Impressivo DAB+, BT Radio SET HV
Pricing
Request a quote
We reply within 24 hours
Product Description

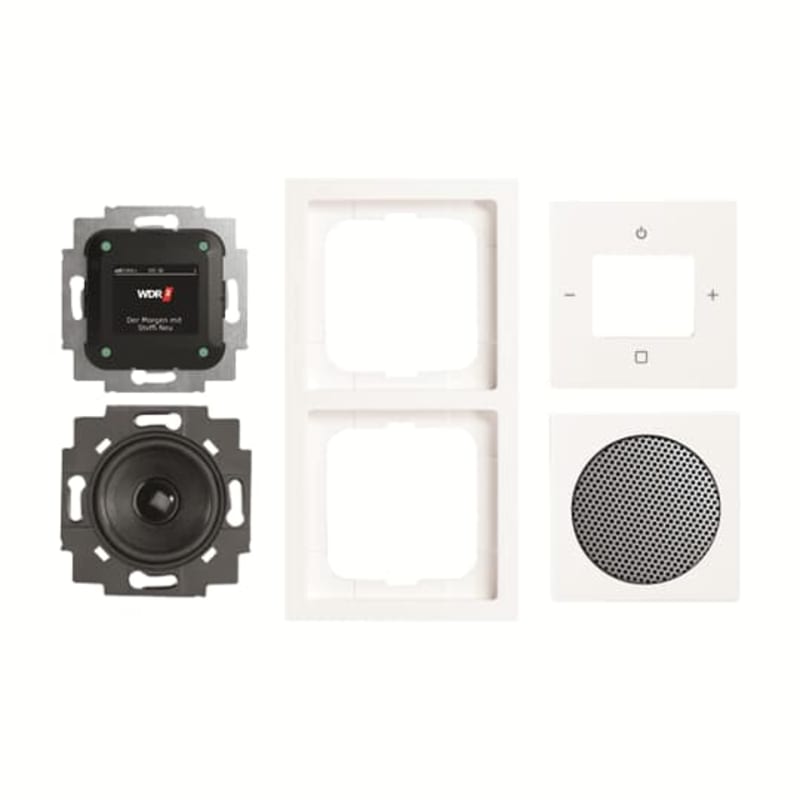

ABB 2CKA008200A0237 — Ready-to-install DAB+ radio alarm clock for mono operation (set packaged). With high-resolution colour display for showing additional information. With Bluetooth interface for music replay of mobile devices. Connection of external Bluetooth loudspeakers possible. Consisting of the Busch-Radio BTconnect DAB+ 8217 U-101. Consisting of speaker insert 8223 U. Consisting of the cover plate for Busch-Radio 8252-84-101. Consisting of cover plate for speaker insert 8253-84. Consisting of 2gang future® linear cover frame 1722-184K.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA008200A0237
- EAN / GTIN
- 4011395304518
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Screw; Without Claw
- Modular Components Included
- Kit
- Ambient Air Temperature
- Operation 5 ... +40 °C
- Degree of Protection
- IP20
- Transmission Standard
- Bluetooth
- Display Type
- LCD
- Screen Type
- Flat
- Broadcast Standard
- DAB+; FM
- Terminal Type
- Screwless Terminals
- Rated Voltage (U r )
- 230 V
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- 0.4 W; Total 0 W
- Design Range
- future linear; Platform 63
- Surface Finishing
- Untreated; Glossy
- Material
- Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white
- Product Net Width
- 80 mm
- Product Net Height
- 152 mm
- Product Net Depth / Length
- 49 mm
- Built-In Depth ( t 2 )
- 32 mm
- Screen Size
- 1.68 in
- Declaration of Conformity - CE
- 2CKA100000E4241
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000636 - Electronic insert for domestic switching devices
- eClass
- V11.0 : 27144018
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Model
- Radio
- Halogen free
- Yes
- Surface protection
- Untreated
- Radio-controlled
- No
- Material quality
- Thermoplastic
- Transparent
- No
- IFTTT support available
- No
- Min. depth of built-in installation box
- 32 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8527.92
Cross References
- EAN 4011395304518
- SAP 1200639420
- Code 83054648
Product Documentation
