ABB S203-B80 Miniature Circuit Breaker — 3P, Type B, 80 A, 6 kA 2CDS253001R0805
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S203-B80 miniature circuit breaker (MCB) from the System pro M compact range. 3P, rated current In = 80 A, Type B tripping characteristic. Rated breaking capacity Icn = 6 kA (IEC 60898-1); rated operational voltage Ue 230/400 V AC. DIN-rail modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC 60898-1 and IEC 60947-2. ABB order code 2CDS253001R0805, EAN 4016779916271, ABB/SAP material 1200328888, catalogue code 82309764.
Technical Specifications
- Manufacturer
- ABB
- Product family
- System pro M compact
- Type designation
- S203-B80
- Manufacturer part number (MPN)
- 2CDS253001R0805
- EAN / GTIN
- 4016779916271
- ABB / SAP material no.
- 1200328888
- Poles
- 3P
- Tripping characteristic
- Type B
- Rated current In
- 80 A
- Rated breaking capacity Icn
- 6 kA
- Rated operational voltage Ue
- 230/400 V AC
- Standard
- IEC 60898-1, IEC 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60898-1
- HS Code
- 8536.20
Cross References
- EAN 4016779916271
- SAP 1200328888
- Code 82309764
Product Documentation
More from ABB
ABB
AF26Z-30-00-21 60VAC 20-60VDC
AF26Z-30-00-21 24-60V50/60HZ 20-60VDC
ABB
ABB S403-C16 Miniature Circuit Breaker — 3P, Type C, 16 A, 10 kA 2CCS573001R0164
ABB
ABB S403-B10 Miniature Circuit Breaker — 3P, Type B, 10 A, 10 kA 2CCS573001R0105
ABB
Ring Flange
OEZXR159
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LSI, In=25 A, 3-Pole
1SDA067068R1
ABB
NF22E-13 100-250V AC/DC
NF22E-13 100-250V50/60HZ-DC
ABB
ABB MOE XT5 220–250 V AC/DC Stored-Energy Motor Operator for Tmax XT5
MOE XT5 220...250V AC/DC
ABB

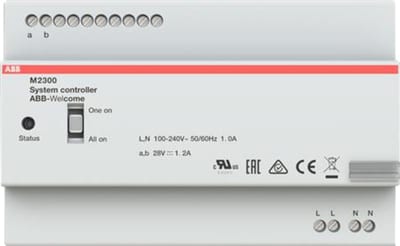

ABB M2300-101 System controller, MDRC, 1200MA, with the updated all on/one on setting
