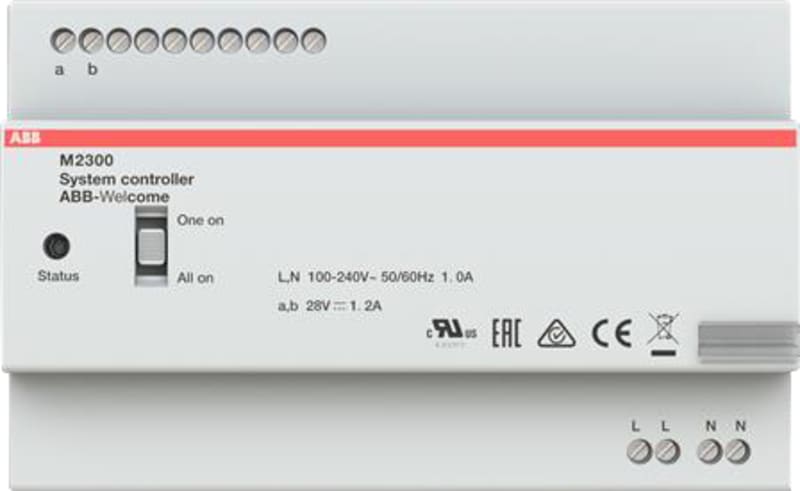

ABB M2300-101 System controller, MDRC, 1200MA, with the updated all on/one on setting
Pricing
Request a quote
We reply within 24 hours
Overview
ABB M2300-101 System controller, MDRC, 1200MA, with the updated all on/one on setting is listed under Electrical Components. Sales unit: pcs; Mounting Type: DIN-Rail; Degree of Protection: IP20; Product Range: Welcome; Transmission Standard: 2-Wire; Terminal Type: Screw Terminals.
Technical Specifications
- Manufacturer part number (MPN)
- M2300-101
- EAN / GTIN
- 6955891818026
- Sales unit
- pcs
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Product Range
- Welcome
- Transmission Standard
- 2-Wire
- Terminal Type
- Screw Terminals
- Current Type
- DC
- Input Voltage (U in )
- 230 V
- Output Voltage (U out )
- Nominal Value 1 20 V
- Output Current Maximum (I out )
- 1200 mA
- Material
- Plastic
- Color
- grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 142 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 65 mm
- EcoSolutions Profile
- 9AKK108470A8422
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 15.72 %
- ABB Site Meeting Group Waste To Landfill Target
- Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
- Extended Product Lifetime
- Product Modularity
- Offered with Takeback Services
- Take Back for Recycling
- Environmental Product Declaration - EPD
- 9AKK108470A8422
- Declaration of Conformity - CE
- 2TMD082113X0001
- EU Data Act Compliance Declaration
- 9AKK108471A4300
- EU Data Act Applicability and Compliance
- 2025 Applicable - Compliant
- ETIM 9
- EC001089 - Power supply door communication
- UNSPSC
- 32151802
- Frequency
- 50 Hz
- Type of current
- DC
- Max. output current
- 1200 mA
- Short-circuit-proof
- Yes
- Installation technique
- 2-wire
- Integrated door opening circuit
- No
- Control function
- Yes
- Evaluation function
- Yes
- Number of connectable participators
- 65
- Service indication
- Yes
- Programming lock
- No
- With contact
- No
- Mounting method
- DIN rail
- Width
- 142 mm
- Height
- 90 mm
- Depth
- 65 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8517.79
Cross References
- EAN 6955891818026
- SAP 1200588626
- Code 82961007
Product Documentation
