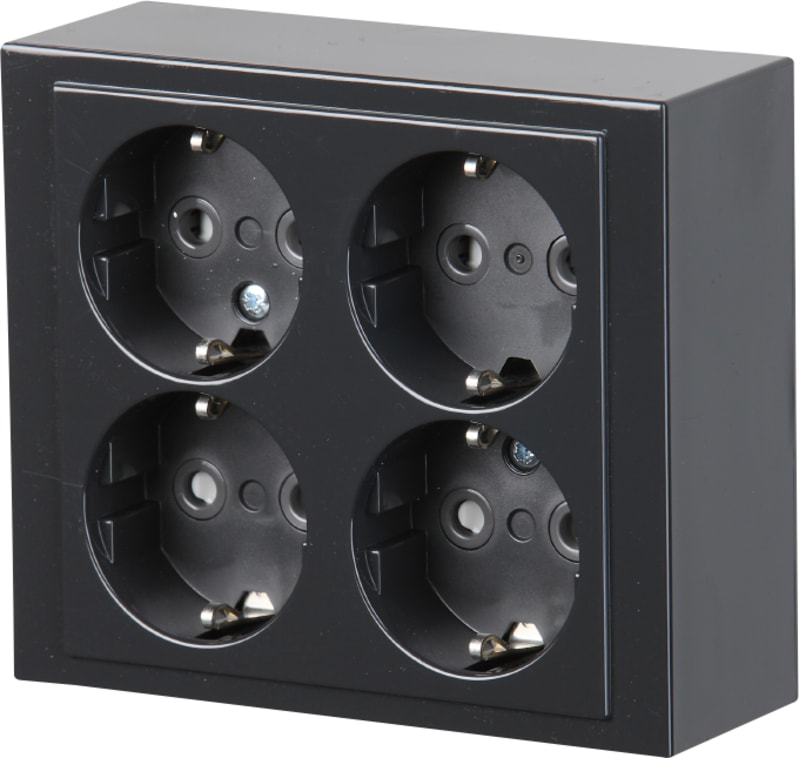

ABB 404EA-81 Impressivo Socket Outlet, 4-Way with Earth, Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 404EA-81 4-way surface-mounted socket outlet with earth (protective contact CEE 7/3, type F) from the Impressivo range in anthracite. Rated 16 A at 250 V, halogen-free thermoplastic housing with IP21 protection and push-in terminals. Supplied 20 pcs per pack.
Technical Specifications
- Manufacturer part number (MPN)
- 404EA-81
- EAN / GTIN
- 6438199003351
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Surface mounted
- Colour
- Anthracite
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 4
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 7021
- Impact strength
- IK00
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP21
- Phase pickup
- None
- Device width
- 115 mm
- Device height
- 42 mm
- Device depth
- 100 mm
- Number of socket outlets switchable
- 1
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- No
- Metallic colour
- No
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6438199003351
- SAP 1000518637
- Code 8634147
Product Documentation
More from ABB
ABB
CuAl kl 1X150-240MM2 XT3 3 pcs
ANSLUT FC CuAl1x120-240mm2 XT3
ABB
Residual Current Circuit Breaker F204 B 63A/300MA
F204 B-63/0,3
ABB
ABB 2CCS500900R0161 ZLS931 Dummy Housing for the SMISSLINE TP System
ABB
CuAl kl 1X35-95MM2, XT1, 4 pcs
KIT FC CuAl 1x35-95mm2 XT1 4p
ABB
Main fuse Circuit Breaker S754DR-E100 SEL
2CDH784010R0822
ABB

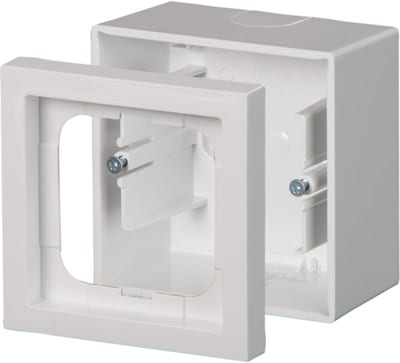

ABB Impressivo Single Surface-Mounting Box, White
1721S80-84
ABB

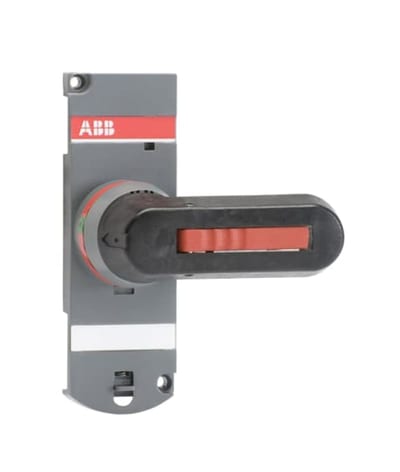

ABB 1SCA022783R0090 OTV250ECK Handle KIT
