AF26Z-30-00-21 60VAC 20-60VDC
Pricing
Request a quote
We reply within 24 hours
Product Description

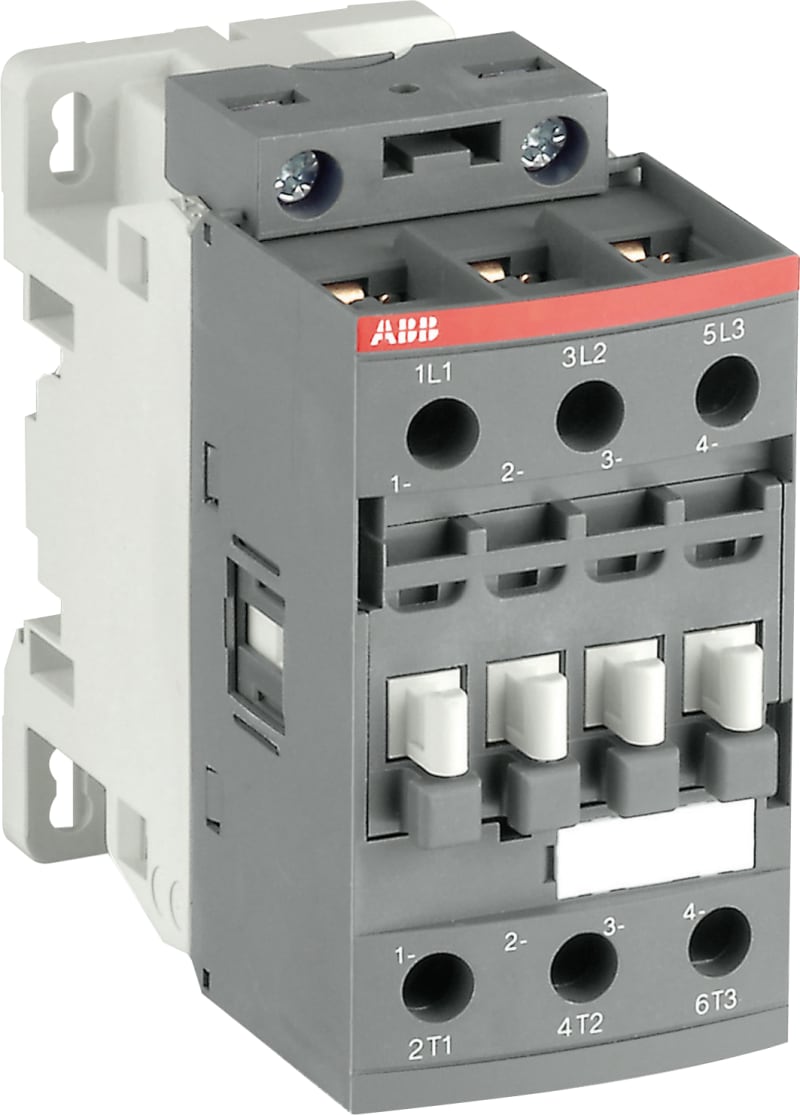

ABB AF26Z-30-00-21 24-60V50/60HZ 20-60VDC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. CONTACTOR AF26Z-30-00-21 24-60V50/60HZ 20-60VDC, coil consumption<500mA for PLS 90.
Technical Specifications
- Manufacturer part number (MPN)
- AF26Z-30-00-21 24-60V50/60HZ 20-60VDC
- EAN / GTIN
- 3471523114111
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 45 pcs
- Voltage
- 60 V AC
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 86 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 3
- Rated operation current Ie at AC-3, 400 V
- 26 A
- Rated operation current Ie at AC-1, 400 V
- 45 A
- Rated control supply voltage AC 50 Hz
- 24–60 V
- Rated control supply voltage AC 60 Hz
- 24–60 V
- Rated control supply voltage DC
- 20–60 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 7.457 kW
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523114111
- SAP 1000225378
- Code 8962348
Product Documentation
