ABB

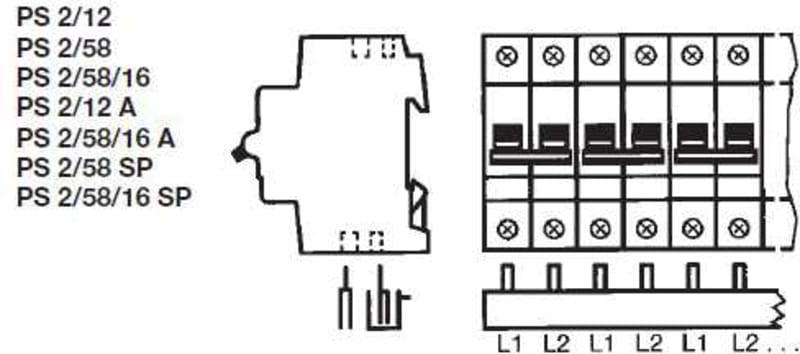

ABB Busbar PS 2/12A 2CDL220010R1012
Part number2CDL220010R1012EAN / GTIN4016779584616HS code8538.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDL220010R1012 — Busbar PS 2/12A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL220010R1012
- EAN / GTIN
- 4016779584616
- Sales unit
- pcs
- Sub-Function
- Pins for breaking of
- Suitable For
- S200; F200; DDA200
- Suitable for Product Class
- 2-pole devices (L1+N)
- Pitch
- 44729.0
- Number of Poles
- 12P
- Number of Phases
- 2-phase
- Number of Mountable Devices
- 6
- Number of Terminals (N term )
- 12
- Accessory Type
- Busbar
- Connection Type
- Pin
- Options Provided
- A
- Rated Cross-Section
- 10 mm²
- Rated Operational Voltage
- 230 / 400 V AC; Maximum 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz; DC
- Overvoltage Category
- III
- RAL Number
- RAL 7035 - Light Grey
- Color
- grey
- Pollution Degree
- 2
- Width in Number of Modular Spacings
- 12
- Product Net Width
- 18 mm
- Product Net Height
- 30.3 mm
- Product Net Depth / Length
- 214 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0914
- Instructions and Manuals
- 2CSC400002D0208
- Mounting Position
- any
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Object Classification Code
- W
- Standards
- IEC/EN 60947-1
- Colour
- Grey
- Insulated
- Yes
- Cross section
- 10 mm²
- Rated permanent current Iu
- 63 A
- Length
- 214 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Rated surge voltage
- 4.5 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 6
- Max. rated operation voltage Ue
- 690 V
- Module width
- 44729 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779584616
- SAP 1000491777
- Code 8605140
Product Documentation
Document preview: ABB 2CDL220010R1012 — OEM Product Page
