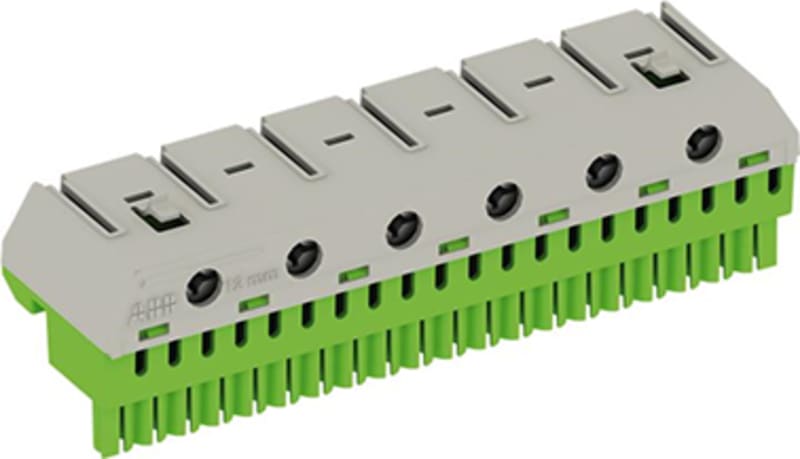

ZK206G Earthing Clamp
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX062762R9999 — PE quick plug-in terminal for plug-in carrier, assembly without tools using simple plug-in and latching equipment, clear color-coding: PE = yellow-green, flexible terminal system, number of terminals: 20 x 1.5 - 4 mm² (spring clamp technology) + 6 x 2.5 to 25 mm² (screw connection technology), external dimensions H x W x D in mm: 32 x 115 x 31 mm, simple labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX062762R9999
- EAN / GTIN
- 4011617627623
- Sales unit
- pcs
- Number of Poles
- 1P
- Number of Clamp Positions
- 26
- Number of Line Terminals
- 26
- Accessory Type
- terminals
- Enclosure Type
- Enclosure accessories
- Terminal Connection Type
- PE-Terminal
- Rated Cross-Section
- 2 - Fine-Strand with Cable End Sleeve 1.5...25 mm²
- Terminal Type
- Quick-Terminal
- Cross-Section ( A cross )
- Conductor Flexible with Cable End Sleeve 1.5...25 mm²; Conductor Solid-Stranded 1.5...25 mm²; Nominal 1.5...25 mm²
- Rated Voltage (U r )
- 230 V
- Rated Operational Voltage
- Maximum 230 V
- Operational Voltage
- 230 V
- Rated Current (I n )
- 63 A
- Color
- green
- Product Net Width
- 115 mm
- Product Net Height
- 32 mm
- Product Net Depth / Length
- 31 mm
- Declaration of Conformity - CE
- 2CPC100018X0201; 2CPC100022X0202
- Instructions and Manuals
- 2CPC130114M5601
- ETIM 9
- EC000446 - Push in terminal
- eClass
- V11.0 : 27141104
- Object Classification Code
- U
- Nominal current
- 63 A
- Nominal voltage
- 230 V
- Cable diameter
- 25 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 1.5–25 mm²
- AWG-range
- 4–16
- Nominal cross section
- 1.5–25 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- No
- With operation lever
- No
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617627623
- SAP 1000733320
- Code 8364963
Product Documentation
