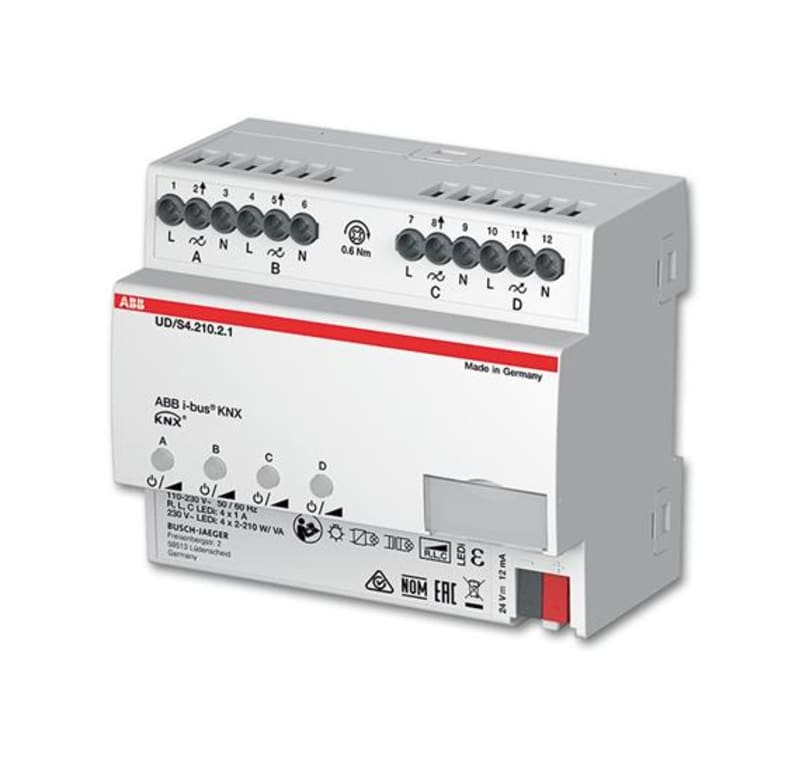

LED dimmer KNX 4X210W

ABB UD/S4.210.2.1 — Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power. Outputs can be connected in parallel in any configuration. minimum load: 2 W. Manual operation on device also possible without bus voltage or in an unprogrammed status. Programming of the device also possible without applied 230V supply voltage. Extensive test and diagnosis functions for the i-Bus tool. Fast parameter setting in ETS using copyable channel templates. With integrated bus coupler. Nominal power at 230 V~ mains voltage: 230 V~ incandescent and halogen lamps: 4 x 210 W/VA to 1 x 600 W/VA. Dimmable 230 V~ LEDi: 4 x 210 W/VA to 1 x 600 W/VA in trailing edge control, 4 x 80 W/VA to 1 x 200 W/VA in leading edge control. Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA. Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA. Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 80 W/VA to 1 x 200 W/VA.

Manufacturer part number (MPN)

UD/S4.210.2.1 EAN / GTIN: 4011395251867 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: 2CKA000273B9628 Wiring Diagram: 9AKK108469A8944 Mounting Type: DIN-Rail Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA001373B9659 Data Sheet, Technical Information (Part 2): 2CKA001473B9659 Number of Outputs: 4 Compatible Bus Systems: KNX (TP) Product Range: KNX Transmission Standard: Twisted Pair Wiring Terminal Type: Bus Connection Rated Voltage (U r ): 110 ... 230 V Auxiliary Voltage AC/DC: 110 V AC/DC; 230 V AC/DC Rated Frequency (f): 50/60 Hz Load Type: Universal and LED Retrofit; LEDi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage Color: light grey Width in Number of Modular Spacings: 6 Product Net Width: 105 mm Product Net Height: 90 mm Product Net Depth / Length: 63.5 mm Dimension Diagram: 2CDC072026F0017 EPLAN Data: 9AAC189180_EPLAN Declaration of Conformity - CE: 2CKA100000E2617 Declaration of Conformity - UK-PSTI: 2CKA410000E0224 Declaration of Conformity - UKCA: 2CKA400000E0293 EU Data Act Compliance Declaration: 9AKK108470A9399 Cyber Security Software Support Period: 2 year EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001094 - Dimming actuator for bus system eClass: V11.0 : 27143123 UNSPSC: 39121801
