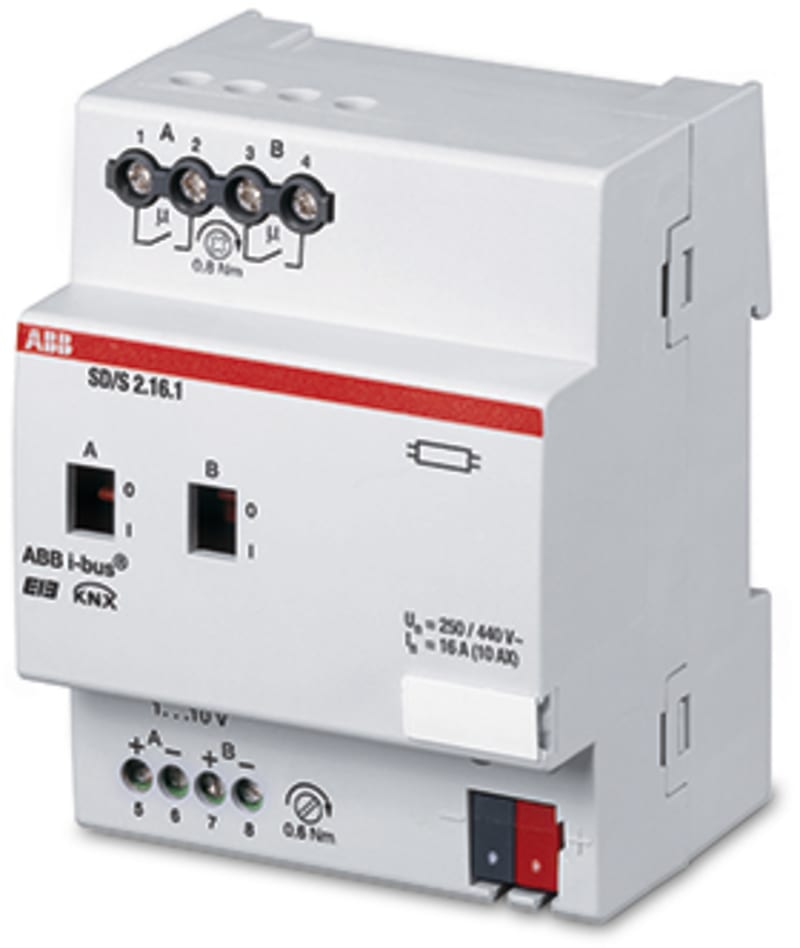

ABB SD/S 2.16.1 SD/S2.16.1 Switch-/Dim Actuator, 2-Fold, 16 A, MDRC
Pricing
Request a quote
We reply within 24 hours
Overview
ABB SD/S 2.16.1 SD/S2.16.1 Switch-/Dim Actuator, 2-Fold, 16 A, MDRC is listed under Electrical Components / Wiring Accessories. HS code: 8536.90; Sales unit: pcs; Instructions and Manuals: 2CDG941042P0003; Wiring Diagram: 2CKA000097E0070; Mounting Type: DIN-Rail; Degree of Protection: IP20.
Technical Specifications
- Manufacturer part number (MPN)
- SD/S 2.16.1
- EAN / GTIN
- 4016779659963
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941042P0003
- Wiring Diagram
- 2CKA000097E0070
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507067D0201; 2CDC507071D0201
- Number of Outputs
- 2
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Rated Operational Voltage
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Maximum Switching Current
- 16 A
- Maximum Control Current DC
- 100 mA
- Rated Frequency (f)
- 50/60 Hz
- Load Type
- Electronic Ballast 1-10V; Universal; Fluorescent Lamp
- Power Loss
- 2.6 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 9AKK107680A8859
- EPLAN Data
- 9AAC189179_EPLAN
- Declaration of Conformity - CE
- 2CDK507125D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0766
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0104
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001094 - Dimming actuator for bus system
- eClass
- V11.0 : 27143123
- UNSPSC
- 39121801
- Object Classification Code
- A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779659963
- SAP 1000191767
- Code 8709652
