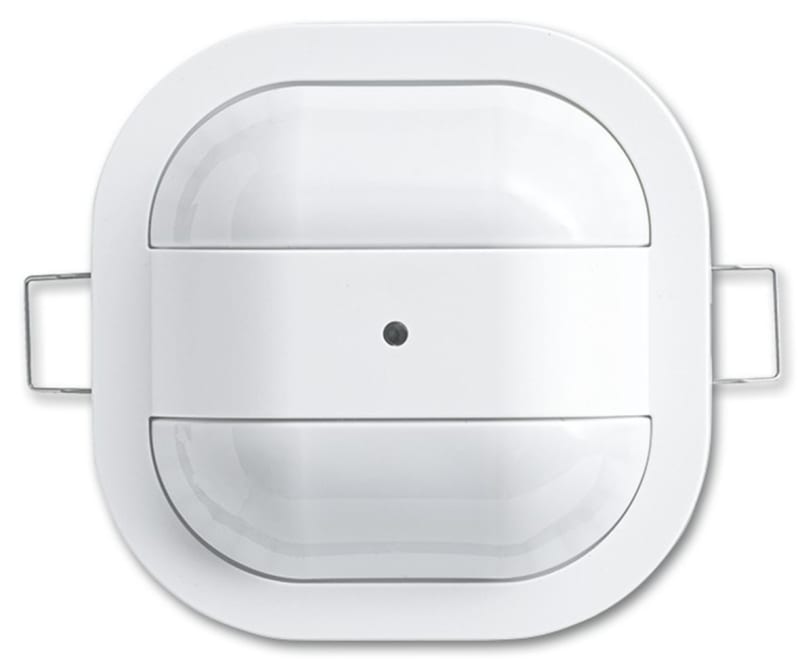

BEV.PROBE UNIV. 12M Relay

ABB 2CKA006800A2735 — Master presence detector with mixed light measurement. For switching lighting systems that depend on brightness and movement. With power relays for LED operation. Detection range (for installation height of 3 m): circular Seated persons: up to Ø 10 m, walking persons: up to Ø 12 m. Extension of the detection range by means of master/slave combination. Visible height 23 mm. For semiautomatic and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. With continuous light/continuous off function (8 hours), activation via intelligent extension unit input possible. With brightness-independent test mode for evaluating the detection zone. With teach-in function of the brightness switching threshold, IR service remote control required. With detection display in test mode. Ceiling installation using integrated spring bracket. Twist protection via additional quick tensioning. Adjustment elements accessible on the front side. Surveillance density: 72 sectors with 640 switching segments. Switch-off delay: approx. 1 min. - 30 min. or short-time pulse adjustable. Remote control possible via IR service remote control 6843. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm.

Manufacturer part number (MPN)

2CKA006800A2735 EAN / GTIN: 4011395217566 HS code: 8536.90 Sales unit: pcs Mounting Type: Built-in Mounting Position: Ceiling Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: -5 ... 45 °C; Operation -5 ... +45 °C Degree of Protection: IP40 Data Sheet, Technical Information: 2CKA001473B9577; 2CKA001673B9577 Measuring Range: 12 m Number of Outputs: 1 Number of Switching Zones: 640 minimum Switching Time: Switch-On 60 s Sensor Type: Passive Infrared Illuminance: 5 ... 2000 lx Terminal Type: Screw Terminals Sensor Detection Range: 90 ... 360 °; Horizontal 90 ... 360 ° Rated Voltage (U r ): 110 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 60 Hz Maximum Switching Power: 2300 W; Fluorescent Lamp 2300 V·A; Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A; Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A; Incandescent Lamp or Halogen High Voltage Lamps 2300 W; LEDi 200 V·A Load Type: LEDi/CFLi; Resistive Load; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Power Loss: 0.3 W; Total 0 W Design Range: ProfessionalLINE Surface Finishing: Matt; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: white Product Net Width: 94 mm Product Net Height: 94 mm Product Net Depth / Length: 72 mm Built-In Depth ( t 2 ): 49 mm Declaration of Conformity - CE: 2CKA100000E0690 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007

HS Code

8536.90

• EAN 4011395217566
• SAP 1200253704
• Code 82212742
