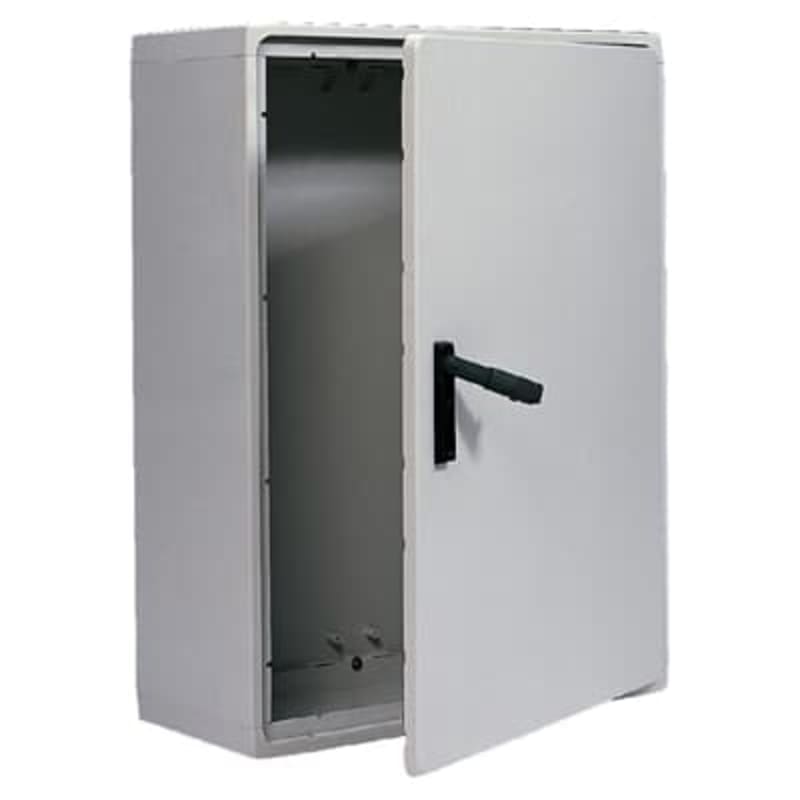

Polysafe Cabinet 1000X1000X320 (4TBP833036C0100)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4TBP833036C0100 — Cabinets with hinged door and centre bar are supplied assembled. The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP65 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth. Rated insulation voltage Ui= 1000V PSS442 Cabinet 1000x1000x320 FT with hinged doorsIP65, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 4TBP833036C0100
- EAN / GTIN
- 5411815251122
- Sales unit
- pcs
- Dimensions
- 1000×1000×320
- Maximum Load Capacity
- Enclosure 10791 N; Door(s) 7848 N; Mounting Plate 10791 N
- Number of Flange Openings
- 0
- Number of Conduit Inlets
- 0
- Number of Doors
- 2
- Number of Rows
- 0
- Cover Plate Type
- Door
- Enclosure Type NEMA
- Type4X
- Door Type
- Double
- Impact Resistance Rating
- IK10
- Power Loss
- Total 220 W; Δt = 20K - Enclosures 220 W
- Surface Finishing
- Untreated
- Housing Material
- Plastic
- Material
- GRP (Glass fibre reinforced plastic)
- Cover Style
- Closed
- RAL Number
- RAL 7035 - Light Grey
- Color
- Grey
- Number of Modules
- 0
- Degree of Protection
- IP65
- Protection Class
- Isolated (Class II)
- Width in Number of Modular Spacings
- 0
- Product Net Width
- 1000 mm
- Product Net Height
- 1000 mm
- Product Net Depth / Length
- 320 mm
- Built-In Depth ( t 2 )
- 286 mm
- Thickness
- Cabinet Plate 4 mm; Door Plate 4 mm
- CAD Dimensional Drawing
- 4TBP833036C0100STP
- Declaration of Conformity - CE
- 9AJK000580
- Mounting Type
- Floor installation
- ETIM 9
- EC000261 - Enclosure/cabinet (empty)
- UNSPSC
- 39121103
- eClass
- V11.0 : 27142408
- Colour
- Grey
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 320 mm
- With mounting plate
- No
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Material quality
- GRP (Glass fibre reinforced plastic)
- Impact strength
- IK10
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- Yes
- With ventilation door
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 10791 N
- Max. permitted load of the door(s) according to IEC 62208
- 7848 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 5411815251122
- SAP 1200639354
- Code 83058797
Product Documentation
