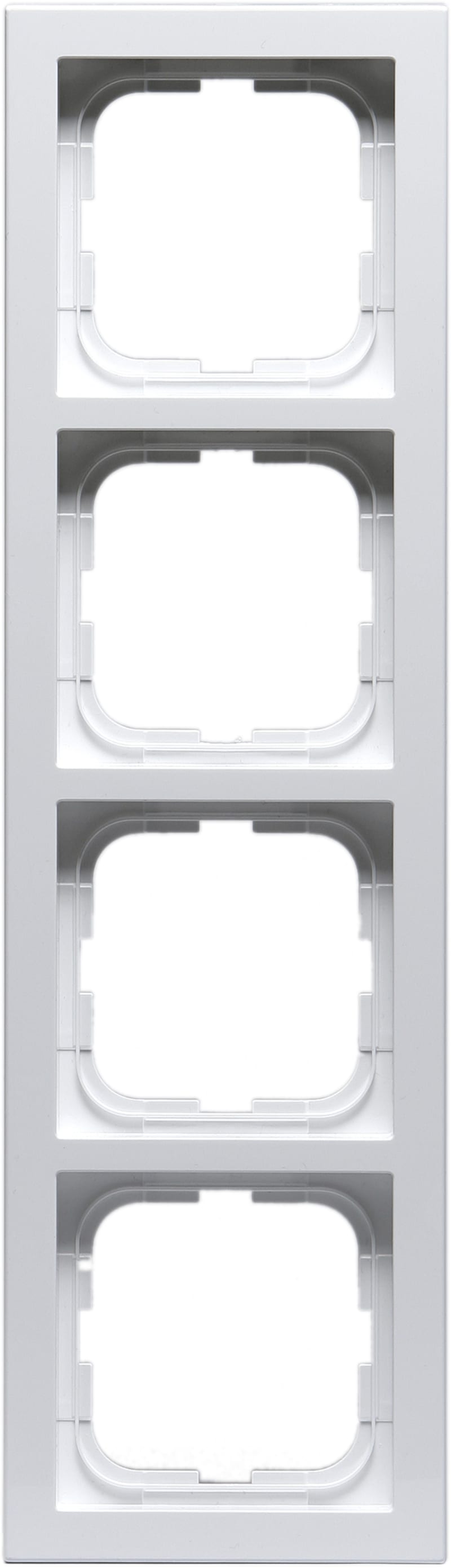

Frame 4V, 85mm, White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1724F85-84 — Flush mounting cover frame for 1-gang cover plated accessories, such as switches. Suitable for both horizontal and vertical installation. The manufacture material is a durable high quality plastic. The surface is glossy and easy to keep clean. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Technical Specifications
- Manufacturer part number (MPN)
- 1724F85-84
- EAN / GTIN
- 6418677327896
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Type of Fastening
- Clamp; Screw
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Environmental Information
- 9AKK107680A2951
- Number of Batteries
- 0
- Design Range
- Impressivo
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9016 - Traffic White
- Color
- White
- Number of Gangs
- 4-gang
- Number of Modules
- Horizontal 0; Vertical 0
- Product Net Width
- 85 mm
- Product Net Height
- 12 mm
- Product Net Depth / Length
- 298 mm
- Dimension Diagram
- 9AKK108470A0629
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- Colour
- White
- Width
- 85 mm
- Halogen free
- Yes
- Height
- 12 mm
- Depth
- 298 mm
- Number of units
- 4
- With hinged lid
- No
- Surface protection
- Untreated
- Built-in height
- 85 mm
- Built-in width
- 298 mm
- Label space/information surface
- No
- Mounting direction
- Horizontal and vertical
- Impact strength
- IK03
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 4
- Number of units vertical
- 4
- Diameter bore hole (opening)
- 74 mm
- With mounting grid
- No
- Number of switch inserts
- 4
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6418677327896
- SAP 1000361680
- Code 8412380
