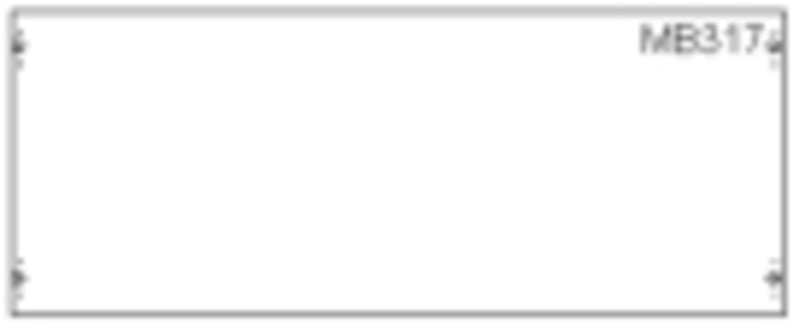

MBB317 Blind module (2CPX041727R9999)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041727R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for touch guard, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041727R9999
- EAN / GTIN
- 4011617417279
- Sales unit
- pcs
- Number of Panel Heights
- 2
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 000
- DIN Place Units
- 72
- Meter Boards
- 0
- Module Function
- touch guard
- Cover Color
- Grey
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Color
- Light grey
- Number of Modules
- 72
- Product Net Width
- 750 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 120 mm
- Section Width
- 3
- Built-In Depth ( t 2 )
- 120 mm
- EPLAN Data
- 9AAF623199_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112192M5601
- ETIM 9
- EC001892 - Distributor assembly with protection against contact
- ETIM 10
- EC001892 - Distributor assembly contact protection
- eClass
- V11.0 : 27400615
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 750 mm
- Height
- 300 mm
- Depth
- 120 mm
- Colour cover
- Grey
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617417279
- SAP 1000120161
- Code 8618707
Product Documentation
