Lysbuevakt TVOC-2 (TVOC-2-240)
Pricing
Request a quote
We reply within 24 hours
Product Description

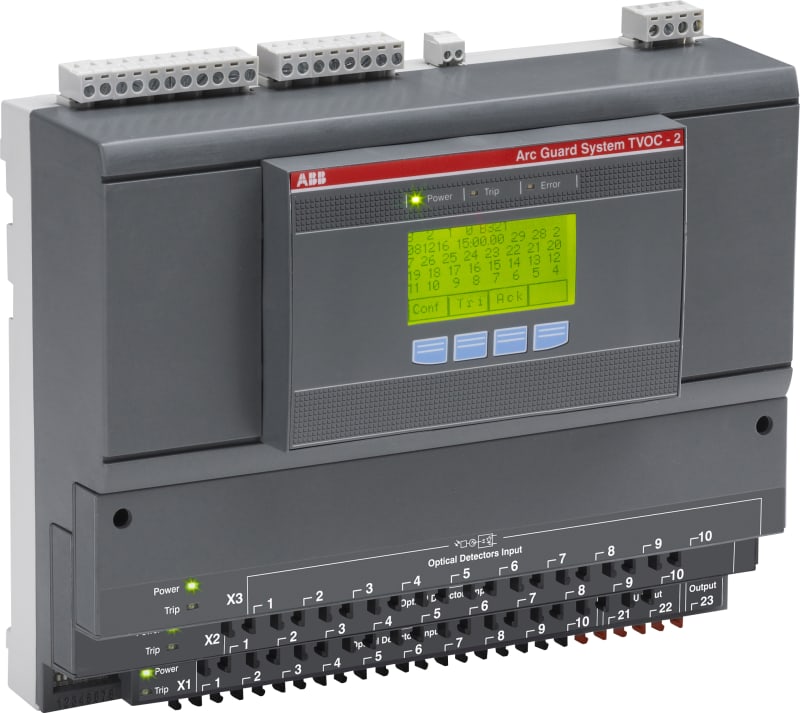

ABB TVOC-2-240 — The TVOC-2 Arc Guard System is an arc protection relay that mitigates arc faults and helps to protect people and equipment. The Arc monitor is the main unit of the Arc Guard System which detects the light of an arc and through the fast IGBT contacts sends an electrical signal within 1 ms to a nearby breaker that breaks the power and extinguishes the arc. The Arc monitor has 10 detector inputs and can trip up to three breakers with zone selectivity if needed. Up to 2 extension units can extend the number of light detectors to 30 and the unit includes an HMI that can be placed on the outside of the door. Detectors are sold in a wide range of lengths to fit a full switchgear design. Supply voltage 100. 250 V DC or 100. 240 V AC 50 / 60 Hz. Accessories include current sensing unit, optical cables, cable straps etc.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-240
- EAN / GTIN
- 7320500382172
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Technical Information
- Sisältää ohjauspaneelin
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -25 ... +55 °C
- Environmental Information
- 1SAC200041H0003
- Product Net Width
- 210 mm
- Product Net Height
- 230 mm
- Product Net Depth / Length
- 80 mm
- Additional Information
- ARC MONITOR TVOC-2
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Mounting Type
- Wall mounted or DIN
- Number of Auxiliary Contacts CO (SPDT)
- 3
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 3
- Power Loss
- 5 W
- Rated Operational Voltage
- 100 ... 240 V AC/DC
- Terminal Type
- Screw Terminals
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 3594 >> Interface module
- Object Classification Code
- B
- UNSPSC
- 32151802
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382172
- SAP 1000407857
- Code 8484654
Product Documentation
More from ABB
ABB
Tenton 6/12V White SB/U12.0.1-84
2CKA006330A0016
ABB
Residual Current Circuit Breaker F204 A 80A/100MA
2CSF204101R2800
ABB
MBB317 Blind module (2CPX041727R9999)
ABB
Polysafe Cabinet 1000X1000X320 (4TBP833036C0100)
ABB
Wall-mount cabinet GEMINI sealed dr size.3
1SL0203A00
ABB
ABB S403-D10 Miniature Circuit Breaker — 3P, Type D, 10 A, 10 kA 2CCS573001R0101
ABB
ABB S204M-B63 Miniature Circuit Breaker — 4P, Type B, 63 A, 10 kA
2CDS274061R0635
ABB
ABB 2CSM257043R1801 E 9F22 GG20 is a 22X58 mm cylindrical fuse for circuits protection
Catalogue entry last verified: 2026-08-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy TVOC-2-240?
- TVOC-2-240 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is TVOC-2-240.
- What is the HS code for TVOC-2-240?
- The customs tariff (HS) code for TVOC-2-240 is 8538.90.
- Who manufactures TVOC-2-240?
- TVOC-2-240 is a ABB product in the SC002911 range.
- Is a datasheet available for TVOC-2-240?
- Yes — the TVOC-2-240 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for TVOC-2-240?
- The minimum order quantity is 1.
- Is TVOC-2-240 available?
- Yes — TVOC-2-240 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
