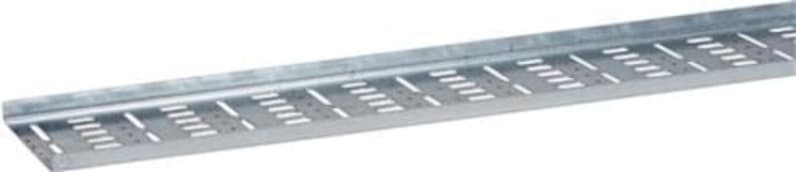

Cable Trunking W4/15-75 3M FZS HV
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 787228 Wibe - installation tray W4-75 - perforated - 3m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 787228 EAN / GTIN: 7321677872282 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Colour: White NCS S 0500 N gl30 Length: 3000 mm Width: 75 mm Height: 15 mm material: Steel material type or surface treatment: Painted Corrosion class: C2 material thickness: 1.25 mm Useful cross section: 6000 mm² With cover: No Side wall perforation: No Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized and coated Weight: 0.8 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 2.13 kg Length pack 1: 3000 mm Width pack 1: 75 mm Height pack 1: 16 mm Pack 4 type: Pallet Quantity pack 4: 260 Weight pack 4: 576 kg Length pack 4: 3000 mm Width pack 4: 100 mm Height pack 4: 0 mm Net weight: 2.13 kg Country of origin: SE ETIM class: EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677872282
- SAP 1200567115
- Code 82928273
Product Documentation
More from Wibe Group
Wibe Group
Wibe Group Defem Conveyor Bracket B17 450 mm, Hot-Dip Galvanised
1149292
Wibe Group
Wallframe 110/55 White RAL9003
STA500052
Wibe Group
Perf renne W3-300 1,96M Fzs white
736933
Wibe Group
L-Piece up 130/72 White RAL9003
STA550039
Wibe Group

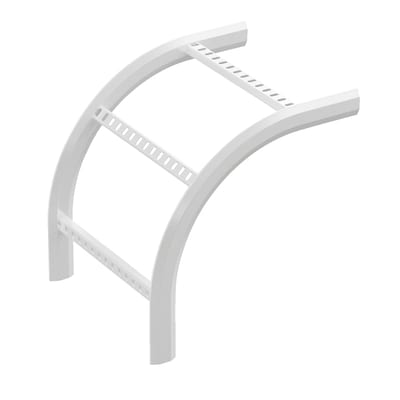

Wibe Group Cable Ladder Vertical Riser Bend 18-800, Zinc-Polyester White
728034
Wibe Group

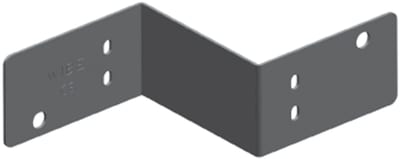

Wibe Reducer Joint W28/60-300 — Pre-galvanized steel
793618
Wibe Group

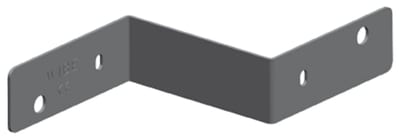

Wibe Reducer Joint W28/40-400 — Pre-galvanized steel (793576)
Wibe Group

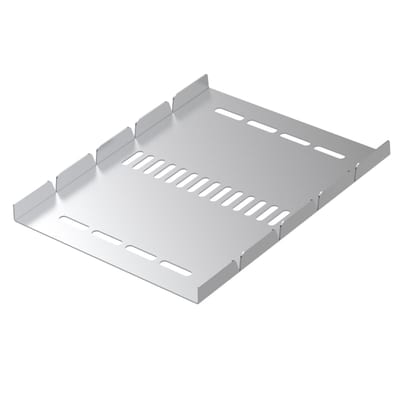

Vertical BEND W4-50 T/Cable Trunking FZS HV
