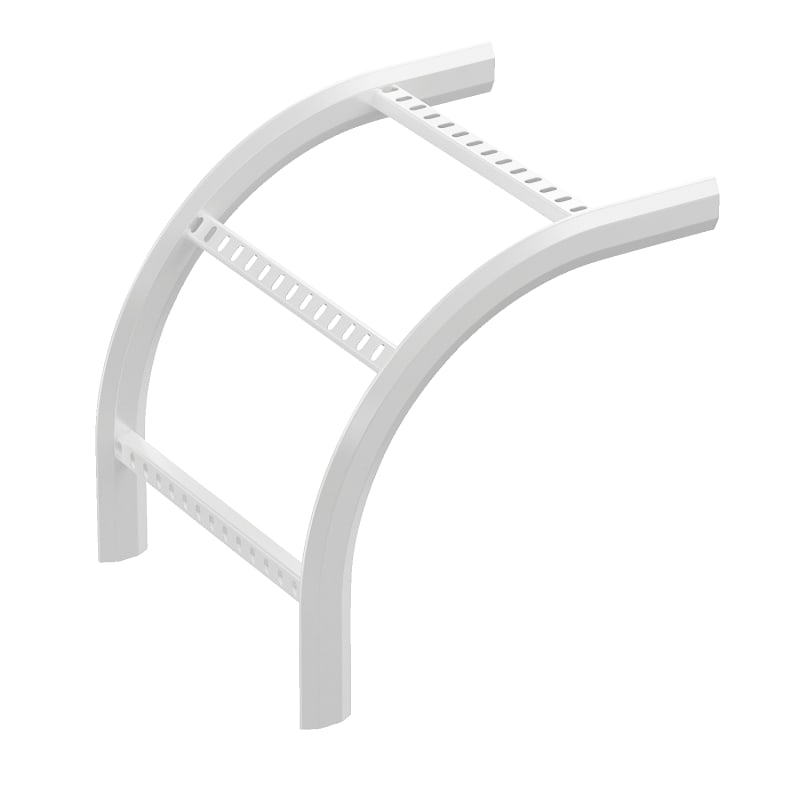

Wibe Group Cable Ladder Vertical Riser Bend 18-800, Zinc-Polyester White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 728034 is a vertical riser bend for the Wibe 18-800 cable ladder system, with an inner radius of 272 mm and a 90 degree change of direction. The 55 mm high, 800 mm wide steel ladder is hot-dip galvanised and additionally coated in white NCS S 0500-N to corrosion class C5. Tube-shaped side joists with perforated-profile rungs; no side-wall perforation. Supplied without connector.
Technical Specifications
- Manufacturer part number (MPN)
- 728034
- EAN / GTIN
- 7321677280346
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 800 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 800 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.1 kg
- Length pack 1
- 452 mm
- Width pack 1
- 797 mm
- Height pack 1
- 452 mm
- Net weight
- 3.1 kg
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677280346
- SAP 1200826454
- Code 84019055
Product Documentation
More from Wibe Group
Wibe Group
Wibe Reducer Joint W28/60-300 — Pre-galvanized steel
793618
Wibe Group
Wibe Reducer Joint W28/40-400 — Pre-galvanized steel (793576)
Wibe Group
Vertical BEND W4-50 T/Cable Trunking FZS HV
784105
Wibe Group

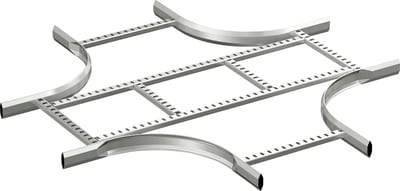

X-branch 17-1000 Fzv
