Wibe Group
L-Piece up 130/72 White RAL9003
Part numberSTA550039EAN / GTIN8720871001822HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

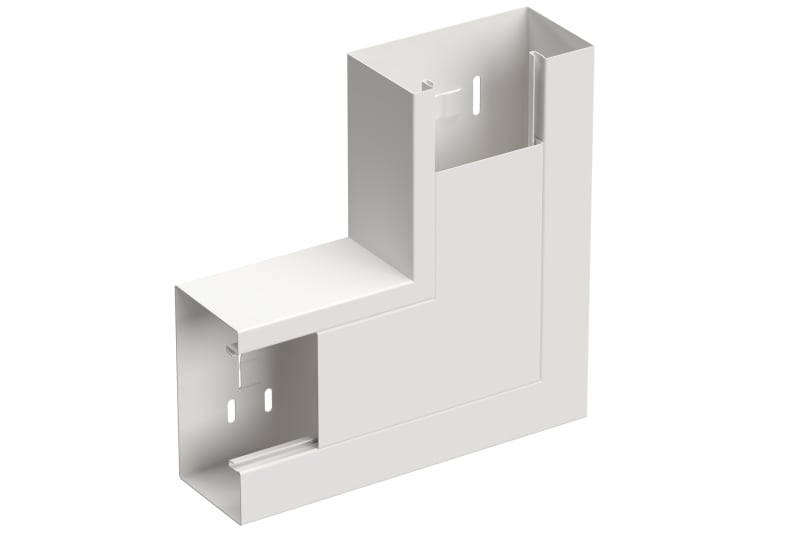

Wibe Group STA550039 L-piece kit riser 130/72mm - steel - white RAL9003/70.
Technical Specifications
- Manufacturer part number (MPN)
- STA550039
- EAN / GTIN
- 8720871001822
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimension
- 130/72
- Length
- 250 mm
- Width
- 72 mm
- Height
- 250 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Direction
- Ascending
- Symmetric
- No
- Model
- Base unit and cover
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 1.23 kg
- Length pack 1
- 280 mm
- Width pack 1
- 280 mm
- Height pack 1
- 80 mm
- Net weight
- 1.23 kg
- Country of origin
- NL
- ETIM class
- EC000876
- GWP Total A1-A3
- 4.936 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871001822
- SAP 1200714421
- Code 83808370
Product Documentation
Document preview: L-Piece up 130/72 White RAL9003 (STA550039) — Specification sheet
