Wibe Group

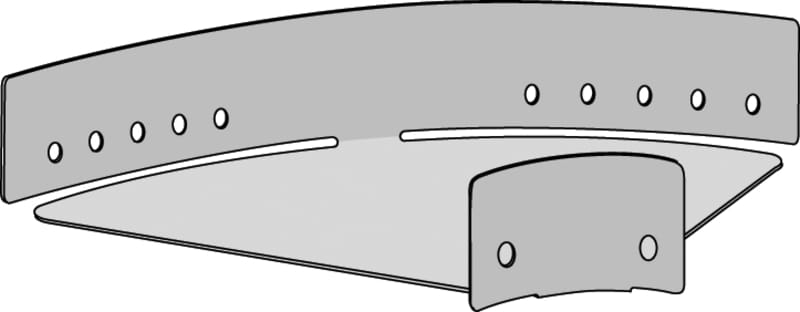

Adjustable Angle W10S/60-500 FZS HV
Part number782477EAN / GTIN7321677824779HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782477 Wibe - adjustable bend W10S/60-500 - steel pre-galvanized white.
Technical Specifications
- Manufacturer part number (MPN)
- 782477
- EAN / GTIN
- 7321677824779
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Change of direction
- Horizontal
- Angle
- Adjustable
- Construction type
- Vertical adjustable bend element
- Bend model
- Smooth bend
- With cover
- No
- Inner radius
- 0 mm
- Cable tray height
- 60 mm
- Cable tray width
- 500 mm
- Material thickness
- 1.25 mm
- Side wall perforation
- No
- Mounting perforation in bottom
- No
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Quantity pack 1
- 1
- Weight pack 1
- 2.92 kg
- Length pack 1
- 608 mm
- Width pack 1
- 830 mm
- Height pack 1
- 1 mm
- Net weight
- 2.92 kg
- Country of origin
- SE
- ETIM class
- EC002400
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677824779
- SAP 1000779935
- Code 81391097
Product Documentation
Document preview: Adjustable Angle W10S/60-500 FZS HV (782477) — Specification sheet
