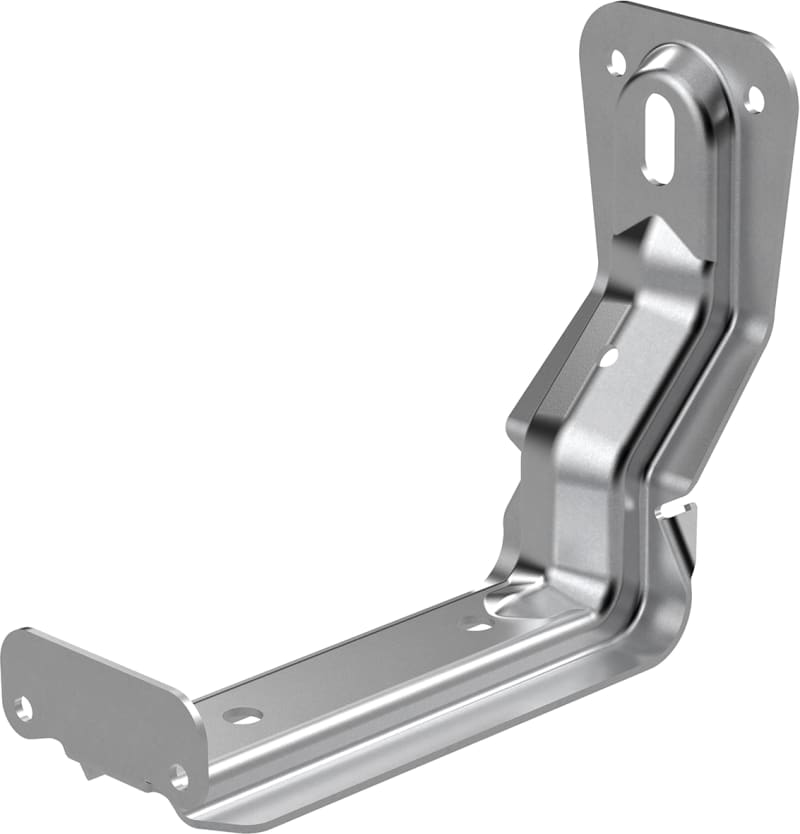

Wibe Group 729030 Internal Cantilever Arm W17/40-200 Pre-Galvanized White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 729030 is an internal W17/40 series 200 mm cantilever arm in painted white NCS S 0500 continuously galvanized and coated steel, corrosion class C2. It supports cable ladders up to 200 mm at a 90 degree wall angle with a 1176 N max safe working load per IEC 61537. Sold in packs of two, country of origin Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 729030
- EAN / GTIN
- 7321677290307
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 219 mm
- Width
- 55 mm
- Height
- 140 mm
- Suitable for cable management system width
- 200 - 200 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1176 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.35 kg
- Length pack 1
- 220 mm
- Width pack 1
- 67 mm
- Height pack 1
- 140 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 180
- Weight pack 4
- 91 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.35 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677290307
- SAP 1000005985
- Code 834878
Product Documentation
More from Wibe Group
Wibe Group
Adjustable Angle W10S/40-400 FZS HV
729107
Wibe Group
Cover 90° 15-800 T/Cable Ladder FZV C4
781793
Wibe Group
Mounting channel W4/15-150 3M Z+
CSU795995
Wibe Group
END CAP W45/40-100 FZS HV
729178
Wibe Group
Wibe Group CSU795316 Cantilever Arm 50i-100 Hot-Dip Galvanized Steel
Wibe Group
Utjevningstykke 170/72mm Black RAL9017
STA550149
Wibe Group
90° Angle W10/40-50 flat ZP white
CSU795382
Wibe Group

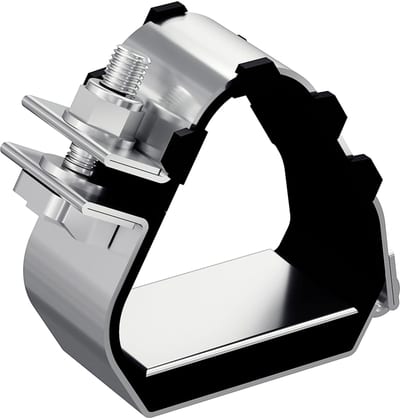

Cable Clips ER33-38 SF
