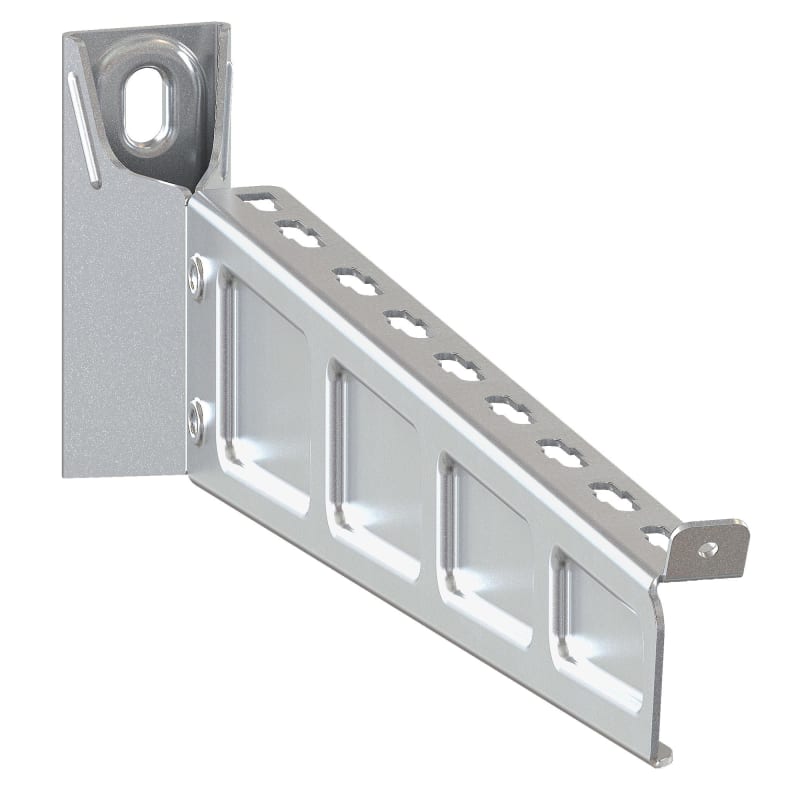

Wibe Group CSU795316 Cantilever Arm 50i-100 Hot-Dip Galvanized Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795316 is a 50i-100 mm cantilever arm in hot-dip galvanized steel, corrosion class C4. It provides wall or profile mounting for cable ladders up to 100 mm at 90 degrees with a 1353 N max safe working load per IEC 61537. Country of origin Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795316
- EAN / GTIN
- 3606480911293
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Length
- 159 mm
- Width
- 43 mm
- Height
- 80 mm
- Suitable for cable management system width
- 100 - 100 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Hot-dip galvanized
- Max. safe working load according to IEC 61537
- 1353 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.19 kg
- Length pack 1
- 150 mm
- Width pack 1
- 43 mm
- Height pack 1
- 80 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 700
- Weight pack 4
- 170 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 530 mm
- Net weight
- 0.19 kg
- Country of origin
- SE
- ETIM class
- EC000022
- GWP Total A1-A3
- 0.5301 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606480911293
- SAP 1000747086
- Code 8444575
Product Documentation
