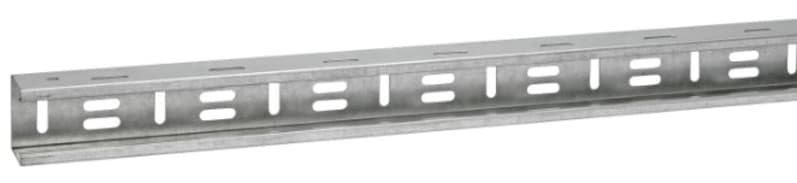

Cable Trunking W3/40-400 3M FZS HV
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 737543 Wibe - cable tray W3/40-400 - perforated - 3 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 737543 EAN / GTIN: 7321677375431 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Colour: White NCS S 0500 N gl30 Length: 3000 mm Width: 400 mm Height: 40 mm material: Steel material type or surface treatment: Painted Corrosion class: C2 material thickness: 1.25 mm Useful cross section: 16000 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized and coated Weight: 2 kg/m Load test type according to IEC 61537: Type I Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 12.3 kg Length pack 1: 3000 mm Width pack 1: 400 mm Height pack 1: 40 mm Pack 4 type: Pallet Quantity pack 4: 32 Weight pack 4: 417 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 500 mm Net weight: 12.3 kg Country of origin: SE ETIM class: EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677375431
- SAP 1000679337
- Code 8576662
Product Documentation
More from Wibe Group
Wibe Group
Wibe Splice Plate 50 mm — Glass-fibre reinforced polyester (GRP)
MCT3102PC1
Wibe Group
Sheet-Metal Ceiling Bracket B48 M8 ELZ 6 pcs
1149472
Wibe Group
Wall Bracket 200 FZS
CSU08060300
Wibe Group
Cover clamp forsterk. LM100-300 GRP PC1
MCL3242PC1
Wibe Group
Inner BEND 55/200 90° FZV
716241
Wibe Group
Profillklammer 37 Steel Z+ C4
CSU795598
Wibe Group
Wibe Support Beam / Joint W7/40-300 — Hot-dip galvanized steel (791278)
Wibe Group
Wibe Splice Piece 45 — Zinc + epoxy powder-coated steel, white
714227
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
