Wibe Group

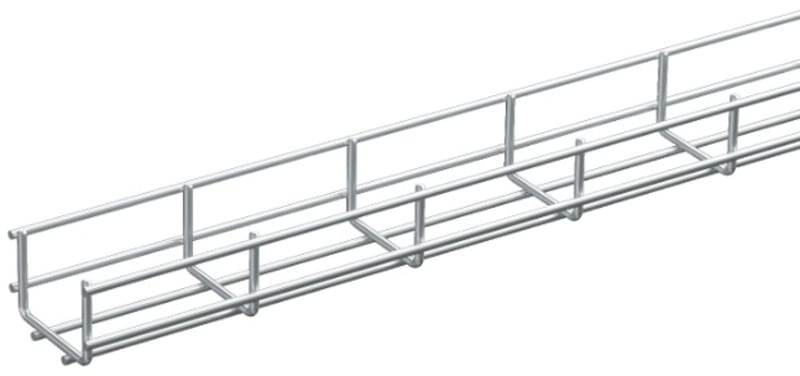

Wire mesh tray 75/55-Ø5 U-FORM. 2,5M SF
Part number1149310EAN / GTIN7332227013109HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 1149310 WIBE Wire mesh tray U-shaped 75/55-Ø5 L=2,5m Steel Acid-resistant AISI 316L.
Technical Specifications
- Manufacturer part number (MPN)
- 1149310
- EAN / GTIN
- 7332227013109
- Sales unit
- pcs
- Wire diameter
- 5 mm
- Width
- 75 mm
- Model
- Without connector
- Height
- 55 mm
- Type of connection
- Screwed
- Surface protection
- Pickled
- Weight
- 1.16 kg/m
- Material quality
- Stainless steel 316 L (1.4404)
- Length
- 2500 mm
- Operating temperature
- -40–120 °C
- Material
- Stainless steel
- Integrated partition
- None
- Usable cross section
- 24000 mm²
- Profile shape
- U-shape
- Working length
- 2500 mm
- Stainless steel, pickled
- Yes
- Wide span model
- Yes
- Suitable for circuit integrity
- No
- Screwless connector
- No
- Load test type according to IEC 61537
- Type I
- Diameter longitudinal wire
- 5 mm
- Diameter transverse wire
- 5 mm
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7332227013109
- SAP 1000564097
- Code 8666489
Product Documentation
Document preview: Wire mesh tray 75/55-Ø5 U-FORM. 2,5M SF (1149310) — Specification sheet
