Product Description

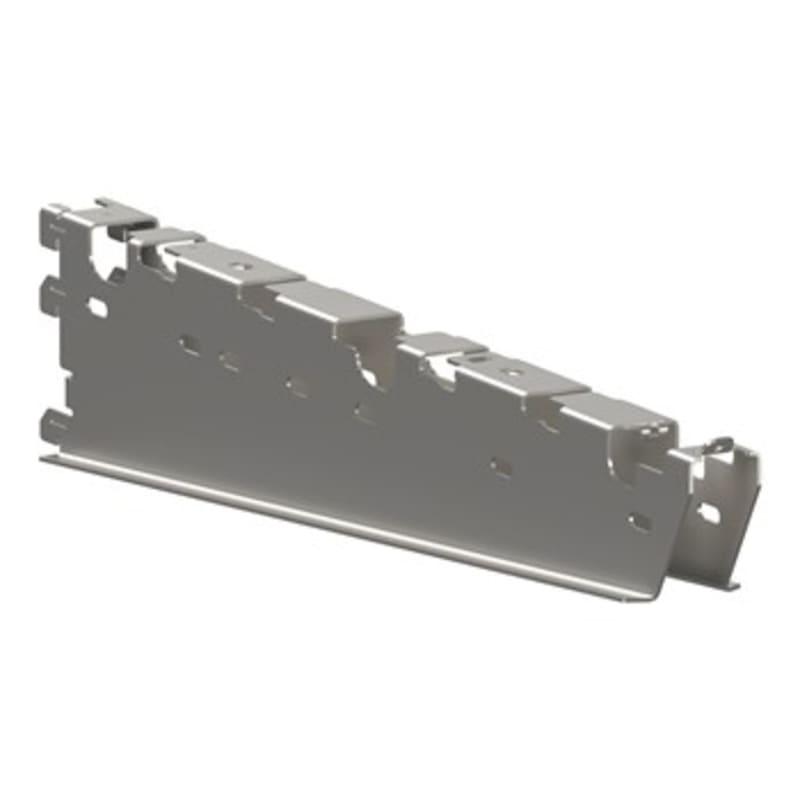

Wibe Group CSU795649 is a CLX3 wall- and profile bracket sized for a 400 mm cable-management system. The pre-galvanised steel component measures 49 x 480 x 92 mm and is rated for a 1250 N safe working load per IEC 61537. It installs at 90° and is suited to corrosion class C2 environments.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795649
- EAN / GTIN
- 3606489905040
- HS code
- 8544.42
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 49 mm
- Width
- 480 mm
- Height
- 92 mm
- Suitable for cable management system width
- 400 - 400 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1250 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.909 kg
- Length pack 1
- 49 mm
- Width pack 1
- 481 mm
- Height pack 1
- 92 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 84
- Weight pack 4
- 106.356 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.91 kg
- Country of origin
- NL
- ETIM class
- EC000022
- GWP Total A1-A3
- 2.25 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489905040
- SAP 1200455226
- Code 82527968
Product Documentation
More from Wibe Group
Wibe Group
Pendant Bracket W21 FZS HV GL30
729054
Wibe Group
Wire mesh tray 220/60-Ø5 U-FORM. 2,5M SF
1149302
Wibe Group
Luminaire rail W70-100 3M FZS HV
CSU794185
Wibe Group
T-Branch 16/600 FZV C4
716199
Wibe Group
T-Branch 16/300 FZV C4
716196
Wibe Group
Mounting Plate 61/400 FOR K-Ladder FZS
732488
Wibe Group
T-Screw 26U M10X30 T/Cable Trays FZV C4
CSU795589
Wibe Group
Cable Ladder KHZV-400 6M FZV
712019
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CSU795649?
- CSU795649 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is CSU795649.
- What is the HS code for CSU795649?
- The customs tariff (HS) code for CSU795649 is 8544.42.
- Who manufactures CSU795649?
- CSU795649 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for CSU795649?
- Yes — the CSU795649 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CSU795649?
- The minimum order quantity is 1.
- Is CSU795649 available?
- Yes — CSU795649 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
