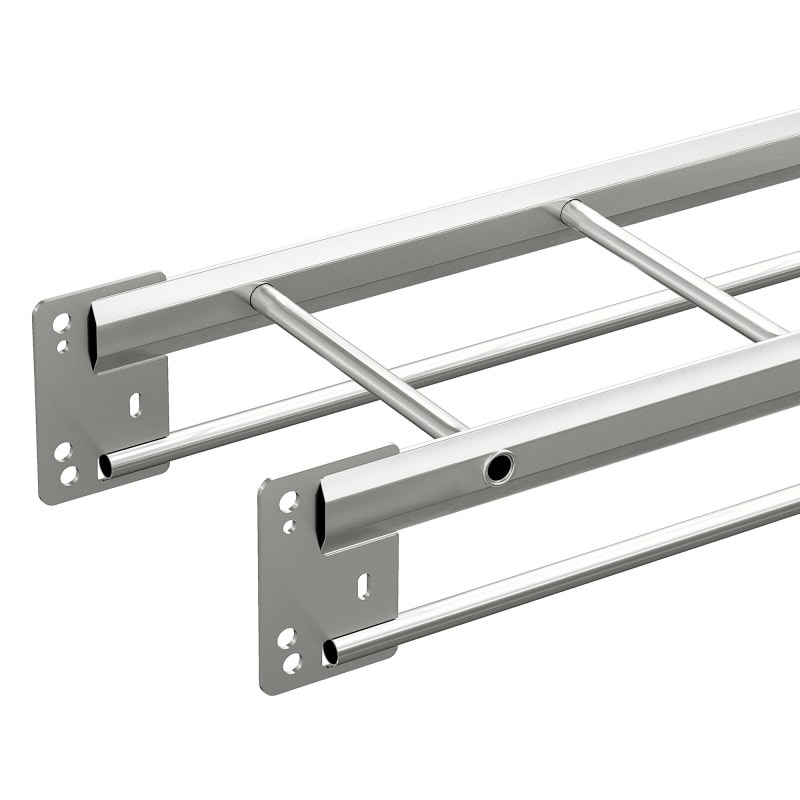

Cable Ladder KHZV-400 6M FZV
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 712019 Wibe - reinforced cable ladder - KHZV-400 - closed side profiles and round rungs - 6 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 712019
- EAN / GTIN
- 7321677120192
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 60 m
- Length
- 6000 mm
- Width
- 400 mm
- Height
- 150 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- Yes
- Type of rung
- Tube shape (closed)
- Fixation rung
- Fully revited
- Useful cross section
- 32000 mm²
- Rung centre spacing
- 250 mm
- Wide span model
- Yes
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Hot-dip galvanized
- Load test type according to IEC 61537
- Type II
- Weight
- 4.8 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 28.8 kg
- Length pack 1
- 6100 mm
- Width pack 1
- 397 mm
- Height pack 1
- 150 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 10
- Weight pack 4
- 288 kg
- Length pack 4
- 6100 mm
- Width pack 4
- 410 mm
- Height pack 4
- 790 mm
- Net weight
- 28.8 kg
- Country of origin
- SE
- ETIM class
- EC000854
- GWP Total A1-A3
- 80.352 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677120192
- SAP 1000484333
- Code 8597165
Product Documentation
More from Wibe Group
Wibe Group
Ceiling Pendant CLX3 24/48 500 FZS
CSU795634
Wibe Group
Plastknott B32 5mm PE 100 pcs
1149366
Wibe Group
Cable Trunking W4/15-200 3M FZS
735992
Wibe Group
Cable Ladder KHZP-150 3M FZV
783516
Wibe Group

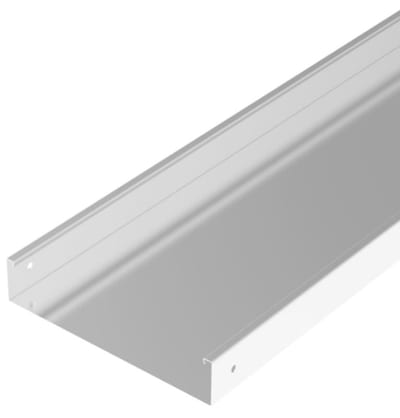

Cable Trunking W1/40-200 2M FZS HV UNPERFORATED.
728988
Wibe Group
Wibe Bend Section 22 M6 — Zinc + epoxy powder-coated steel, white
718410
Wibe Group

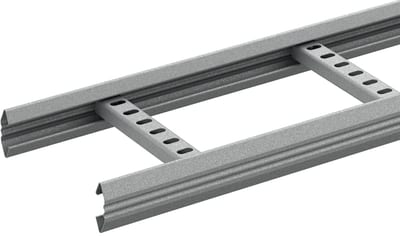

Cable Ladder KHZSP-200 6M FZS
