Wibe Group

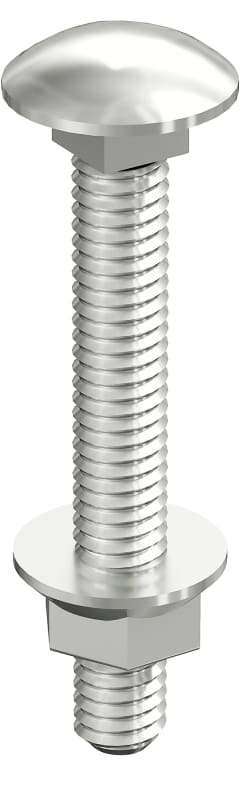

Screw set 20S 8X60MM FZV 10 pcs C4
Part number715736EAN / GTIN7321677157365HS code8544.42
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 715736 Wibe - screw set 20S - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 715736
- EAN / GTIN
- 7321677157365
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Material quality
- 4.6 (steel)
- Surface protection
- Hot-dip galvanized
- Head form
- Rounded head
- Countersunk head
- No
- Dimension square neck bolt
- 8 mm
- Thread size (metric)
- 8
- Length to bottom side head
- 60 mm
- Thread length
- 22 mm
- Full thread
- No
- Pitch thread
- 1 mm
- Thread type
- Metric
- Left
- No
- Head diameter
- 20 mm
- Head height
- 4.5 mm
- With flange
- No
- With nut
- Yes
- With washer
- No
- Self
- No
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.032 kg
- Length pack 1
- 65 mm
- Width pack 1
- 19 mm
- Height pack 1
- 19 mm
- Pack 2 type
- Bag
- Quantity pack 2
- 10
- Weight pack 2
- 0.37 kg
- Length pack 2
- 150 mm
- Width pack 2
- 150 mm
- Height pack 2
- 20 mm
- Pack 3 type
- Carton
- Quantity pack 3
- 100
- Weight pack 3
- 3.7 kg
- Length pack 3
- 150 mm
- Width pack 3
- 150 mm
- Height pack 3
- 11 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 4300
- Weight pack 4
- 189 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.03 kg
- Country of origin
- SE
- ETIM class
- EC003861
- GWP Total A1-A3
- 0.0893 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677157365
- SAP 1000085186
- Code 8842560
Product Documentation
Document preview: Screw set 20S 8X60MM FZV 10 pcs C4 (715736) — Specification sheet
