Wibe Group

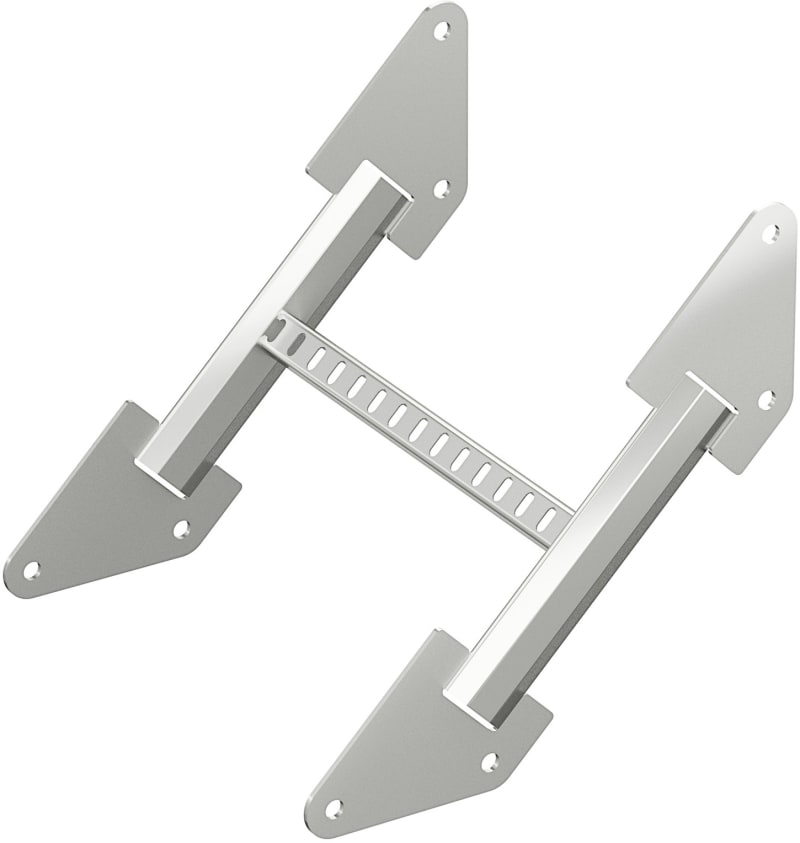

Bend 49/600 FZV C4 (716392)
Part number716392EAN / GTIN7321677163922HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 716392 Wibe - riser coupling 49-600 - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 716392
- EAN / GTIN
- 7321677163922
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 600 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Change of direction
- Rising/descending
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Segmental bend
- Hinging
- No
- Cable ladder height
- 134 mm
- Cable ladder width
- 600 mm
- Model
- Without connector
- Wide span model
- Yes
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.5 kg
- Length pack 1
- 476 mm
- Width pack 1
- 597 mm
- Height pack 1
- 120 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 20
- Weight pack 4
- 87 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 53 mm
- Net weight
- 2.5 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 6.975 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677163922
- SAP 1000063209
- Code 8895103
Product Documentation
Document preview: Bend 49/600 FZV C4 (716392) — Specification sheet
More from Wibe Group
Wibe Group
T-branch 56/400 ZP white
716265
Wibe Group
Angle 90° W10/60-100 SKH Fzs
782039
Wibe Group
90° Bend 55/600 ZP white
716253
Wibe Group
Wall Bracket 50/250 ZP white
723443
Wibe Group
Wibe Group CSU795645 CLX3 100 Cantilever Arm Pre-Galvanized Steel
Wibe Group

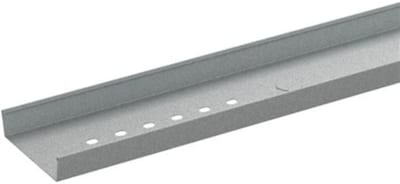

Telerenne 36/50 2M FZS
725065
Wibe Group

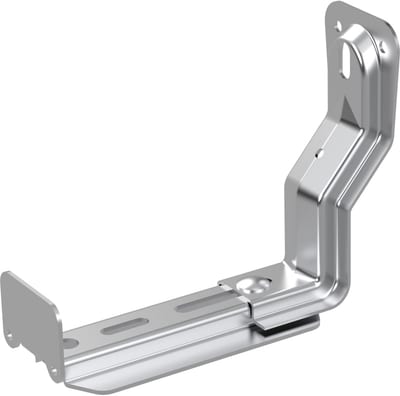

Wibe Group 783507 Adjustable Cantilever Arm W1860-400 Pre-Galvanized White
Wibe Group

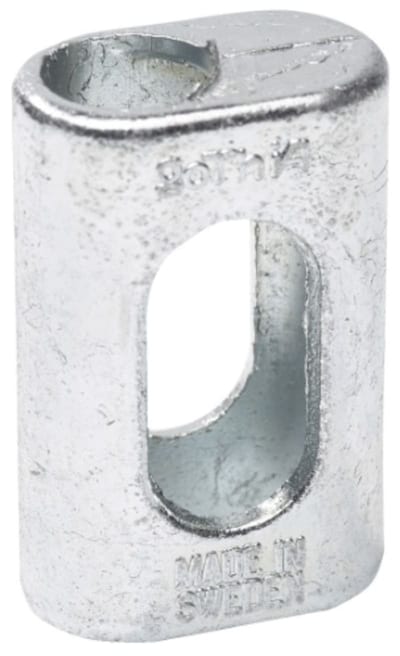

Oval NUT B50 M8 T/B41 ELZ
