Wibe Group 783507 Adjustable Cantilever Arm W1860-400 Pre-Galvanized White
Pricing
Request a quote
We reply within 24 hours
Product Description

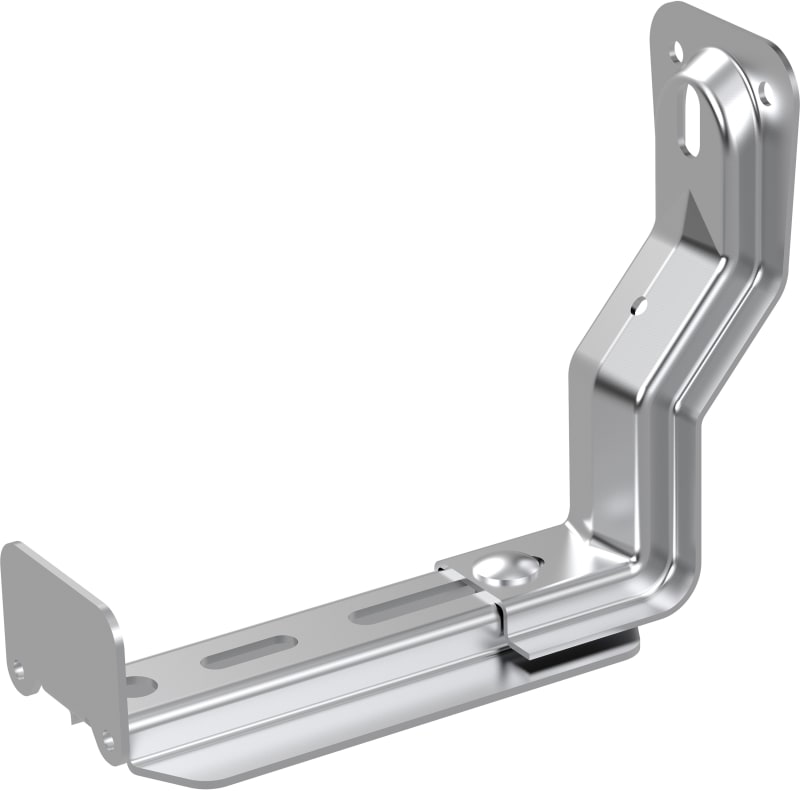

Wibe Group 783507 is an adjustable W1860 series 400 mm cantilever arm in painted white NCS S 0500 continuously galvanized and coated steel, corrosion class C2. It supports cable ladders up to 400 mm at a 90 degree wall angle with a 1176 N max safe working load per IEC 61537. Sold in packs of two, country of origin Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- 783507
- EAN / GTIN
- 7321677835072
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 439 mm
- Width
- 60 mm
- Height
- 160 mm
- Suitable for cable management system width
- 400 - 400 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1176 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.42 kg
- Length pack 1
- 0 mm
- Width pack 1
- 0 mm
- Height pack 1
- 0 mm
- Net weight
- 1.42 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677835072
- SAP 1000779408
- Code 81390376
Product Documentation
