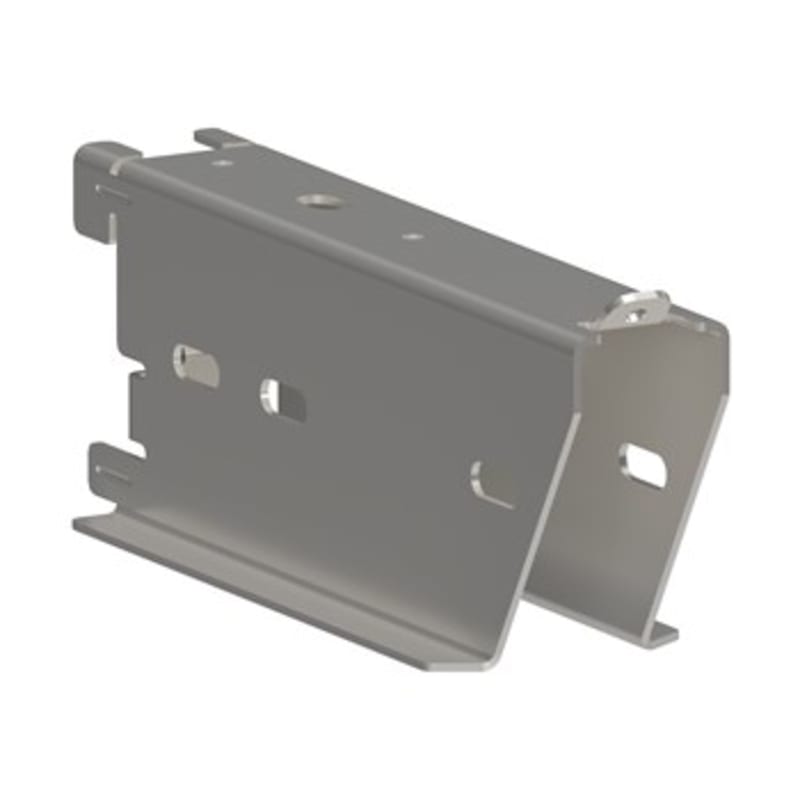

Wibe Group CSU795645 CLX3 100 Cantilever Arm Pre-Galvanized Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795645 is a Wibe CLX3 series 100 mm cantilever arm in continuously galvanized steel, corrosion class C2. It provides wall or profile mounting for cable ladders at a 90 degree angle with a 1800 N max safe working load per IEC 61537. Country of origin Sweden.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795645
- EAN / GTIN
- 3606489905002
- HS code
- 8544.42
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 49 mm
- Width
- 170 mm
- Height
- 62 mm
- Suitable for cable management system width
- 100 - 100 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1800 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.283 kg
- Length pack 1
- 49 mm
- Width pack 1
- 176 mm
- Height pack 1
- 62 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 256
- Weight pack 4
- 102.448 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.28 kg
- Country of origin
- SE
- ETIM class
- EC000022
- GWP Total A1-A3
- 0.804 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489905002
- SAP 1200455232
- Code 82527956
Product Documentation
More from Wibe Group
Wibe Group
Telerenne 36/50 2M FZS
725065
Wibe Group
Wibe Group 783507 Adjustable Cantilever Arm W1860-400 Pre-Galvanized White
Wibe Group
Oval NUT B50 M8 T/B41 ELZ
1149456
Wibe Group

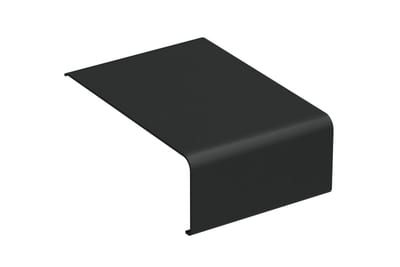

Levelling piece 120/65 so 9017
STA500036
Wibe Group

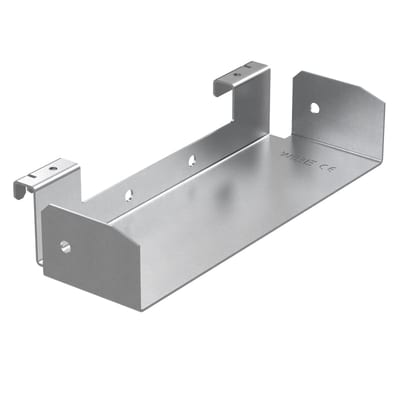

Wibe T-Joint W29/40-600 GL30 — Pre-galvanized steel
724948
Wibe Group

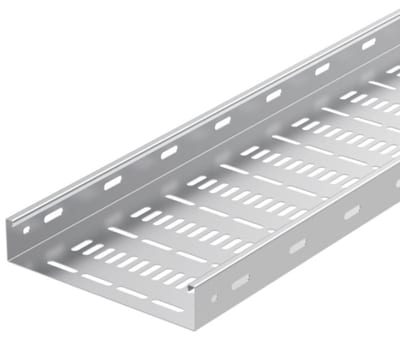

Cable Trunking W3/40-400 1,96M FZS
736691
Wibe Group

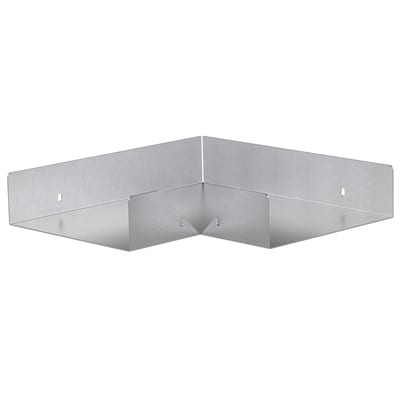

Angle 90° W10/60-300 SKH Fzs
