Wibe Group
Inner BEND 15/1000 90° FZV C4
Part number716073EAN / GTIN7321677160730HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

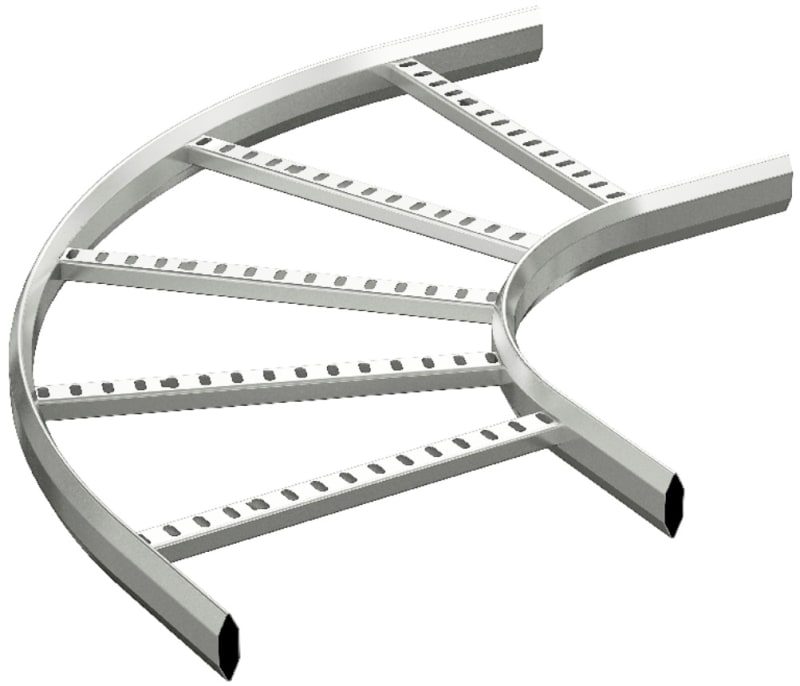

Wibe Group 716073 Wibe - 90 degree interior bend 15-1000 - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 716073
- EAN / GTIN
- 7321677160730
- HS code
- 8544.42
- Sales unit
- pcs
- Width
- 1000 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 1000 mm
- Model
- Without connector
- Inner radius
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 7.6 kg
- Length pack 1
- 997 mm
- Width pack 1
- 997 mm
- Height pack 1
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 14
- Weight pack 4
- 129 kg
- Length pack 4
- 1980 mm
- Width pack 4
- 1130 mm
- Height pack 4
- 710 mm
- Net weight
- 7.6 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 21.204 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677160730
- SAP 1000074919
- Code 8747196
Product Documentation
Document preview: Inner BEND 15/1000 90° FZV C4 (716073) — Specification sheet
