Wibe Group

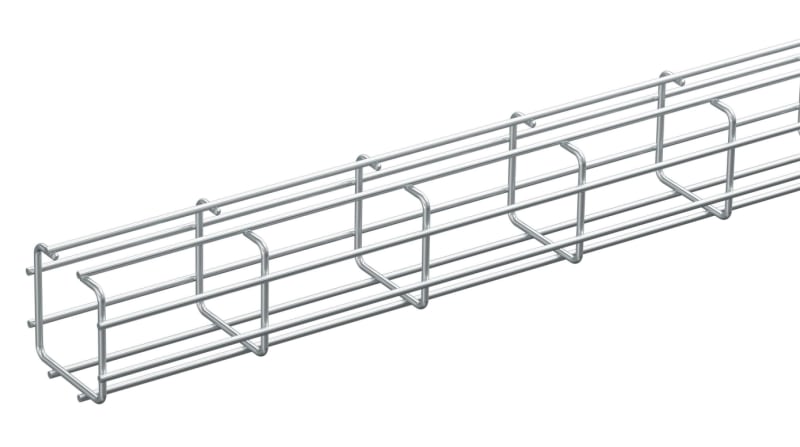

C-wire mesh tray B75X75 2,5M Elz
Part number1149132EAN / GTIN7332227011327HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 1149132 Defem - mesh tray C-shape - 75/75 - wire dia 4 mm - 2.5 m - steel electro-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 1149132
- EAN / GTIN
- 7332227011327
- Sales unit
- m
- Package quantity
- 2 m
- Length
- 2500 mm
- Width
- 75 mm
- Height
- 75 mm
- Material
- Steel
- Material type or surface treatment
- Electro-galvanized
- Corrosion class
- C1
- Profile shape
- C-shape
- Wire diameter
- 4 mm
- Useful cross section
- 8235000 mm²
- Model
- Without connector
- Screwless connector
- No
- Integrated partition
- None
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Galvanic/electrolytic zinc plated
- Weight
- 1.04 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.6 kg
- Length pack 1
- 2503 mm
- Width pack 1
- 75 mm
- Height pack 1
- 75 mm
- Net weight
- 2.6 kg
- Country of origin
- SE
- ETIM class
- EC000853
- GWP Total A1-A3
- 3.926 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7332227011327
- SAP 1000515083
- Code 8631221
Product Documentation
Document preview: C-wire mesh tray B75X75 2,5M Elz (1149132) — Specification sheet
More from Wibe Group
Wibe Group
Wibe Group 783508 Adjustable Cantilever Arm W1860-500 White Painted Steel
Wibe Group
Ceiling Pendant 2F/370 ZP HV 2 pcs
717202
Wibe Group
Partition Plate 39/55 1,75M FZS HV
725786
Wibe Group
Bend 49/500 Fzv (720517)
Wibe Group

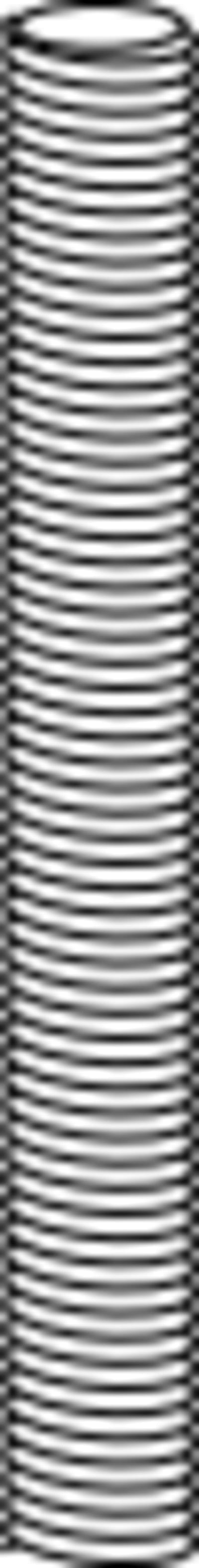

Pendant Bolt W76 2M Sf
723925
Wibe Group

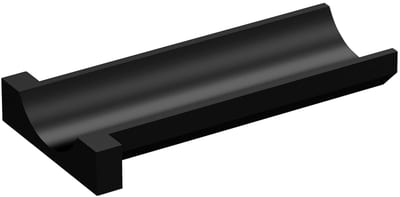

Shim EM-22, Plastic, 100 pcs
709052
Wibe Group

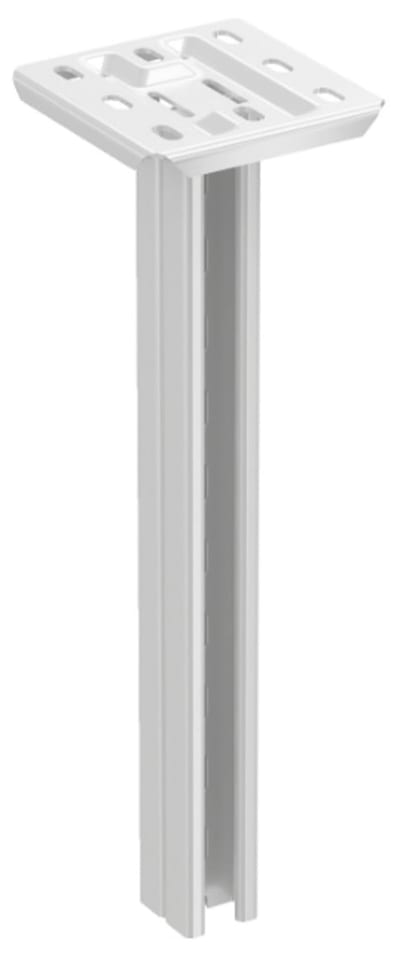

Ceiling Pendant 20/730 ZP HV
716277
Wibe Group

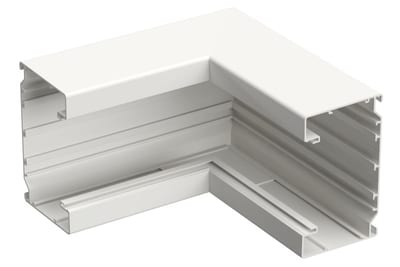

Internal corner al 120/72 White 9003
