Wibe Group
Internal corner al 120/72 White 9003
Part numberSTA520019EAN / GTIN7321679003486HS code7610.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

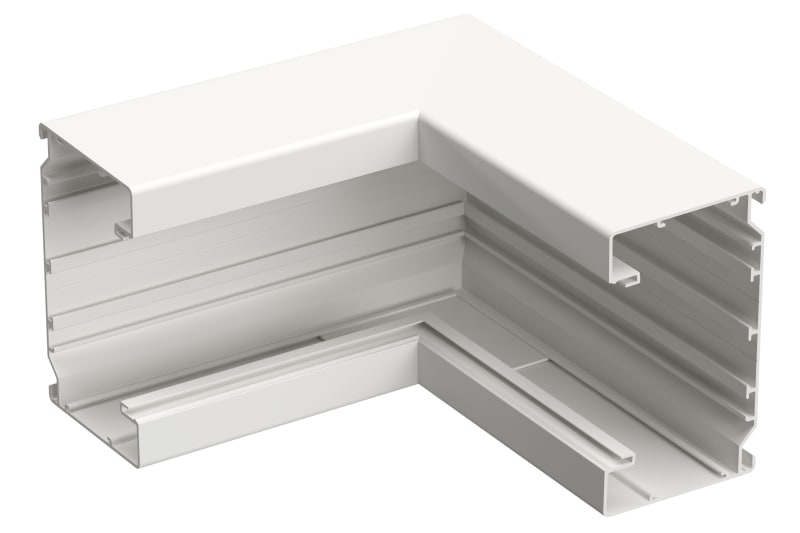

Wibe Group STA520019 Inside corner, Stago WGX-A, aluminium, 120/72, white RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- STA520019
- EAN / GTIN
- 7321679003486
- Sales unit
- pcs
- Dimension
- 120/72
- Colour
- White RAL9003
- Length
- 200 mm
- Width
- 200 mm
- Height
- 122 mm
- Material
- Aluminium
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Shape
- Symmetric
- Number of covers
- 0
- Cover width 1
- 80 mm
- Model
- Base unit
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- No
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 0.57 kg
- Length pack 1
- 210 mm
- Width pack 1
- 210 mm
- Height pack 1
- 130 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 15
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.55 kg
- Country of origin
- SE
- ETIM class
- EC000867
- GWP Total A1-A3
- 1.197 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679003486
- SAP 1200714320
- Code 83808572
Product Documentation
Document preview: Internal corner al 120/72 White 9003 (STA520019) — Specification sheet
