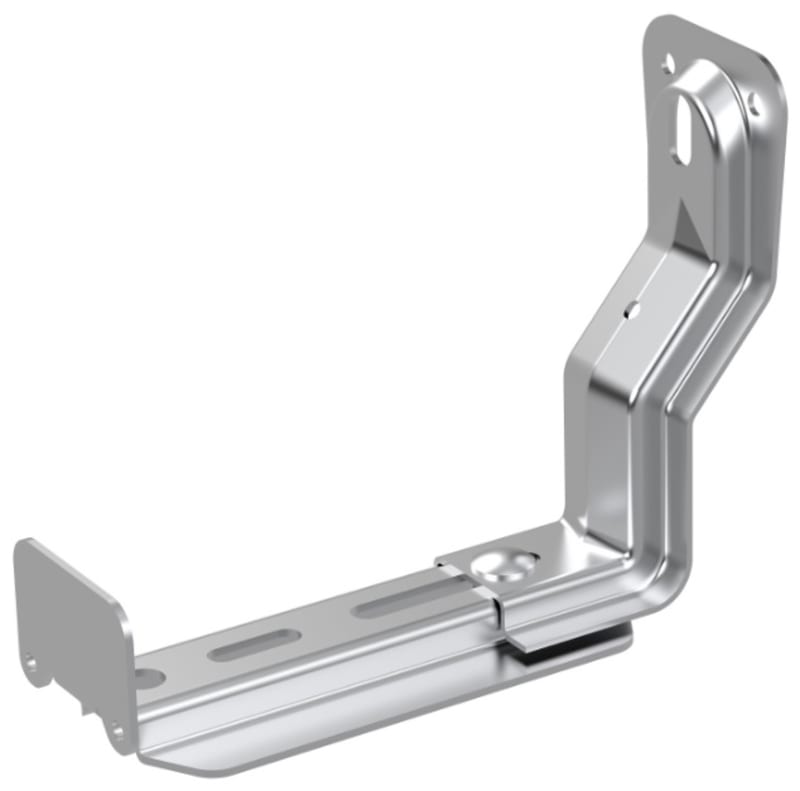

Wibe Group 783592 Adjustable Cantilever Arm W18/40-400 White Painted Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 783592 is an adjustable cantilever arm W18/40-400 in pre-galvanized steel finished in NCS S 0500-N white, for cable-ladder installations 400 mm wide. Corrosion class C2 with a maximum safe working load of 1176 N per IEC 61537.
Technical Specifications
- Manufacturer part number (MPN)
- 783592
- EAN / GTIN
- 7321677835928
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 439 mm
- Width
- 60 mm
- Height
- 185 mm
- Suitable for cable management system width
- 400 - 400 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1176 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.39 kg
- Length pack 1
- 417 mm
- Width pack 1
- 96 mm
- Height pack 1
- 184 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 50
- Weight pack 4
- 100.5 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 1.39 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677835928
- SAP 1000563904
- Code 8666346
Product Documentation
More from Wibe Group
Wibe Group
Support beam W1960-600 Fzs
782337
Wibe Group
Shim EM-70, Plastic (709058)
Wibe Group

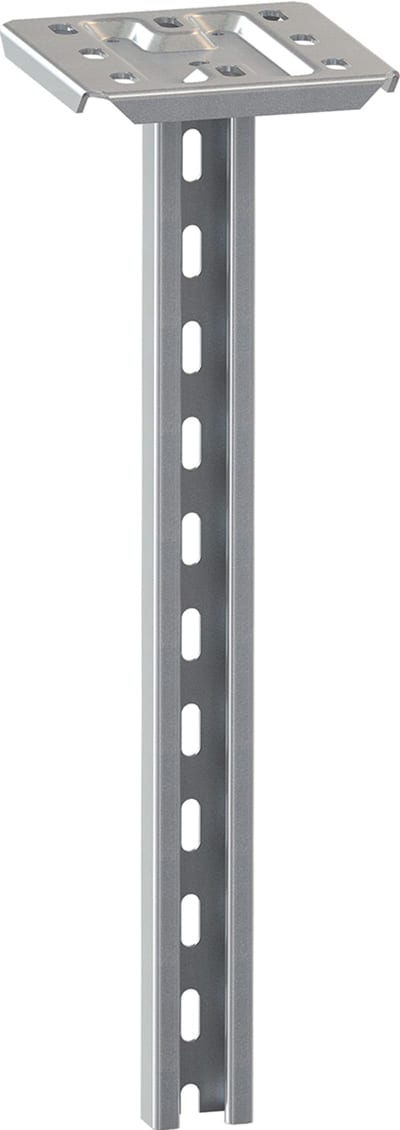

Ceiling Pendant 2FB-280 AISI 316L
CSU795338
Wibe Group

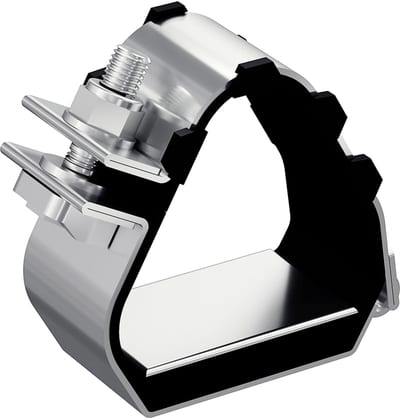

Cable Clips ER59-66 SF
736450
Wibe Group

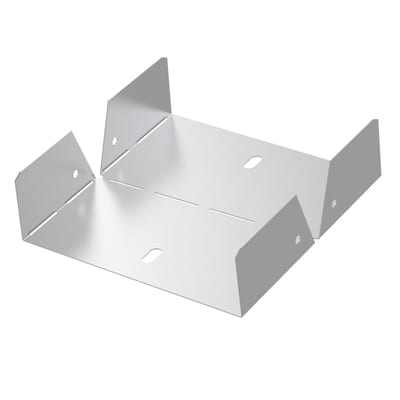

Avvinkl vertical W11/60-400 Fzs
782281
Wibe Group

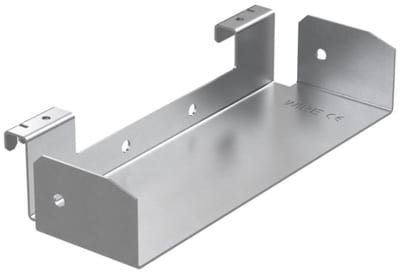

Wibe T-Joint W29/40-70 for W1/W3/W70 — Pre-galvanized steel
790984
Wibe Group

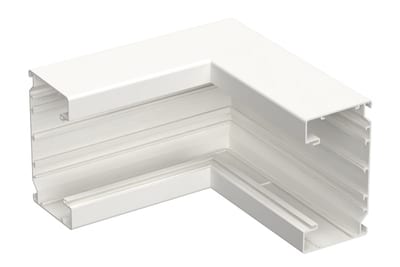

Internal corner al 120/65 hv 9003
STA520035
Wibe Group

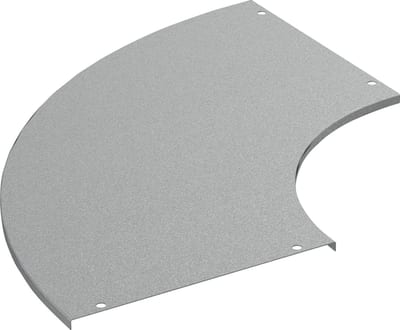

Cover 90° bend- 600 Fzs
