Product Description

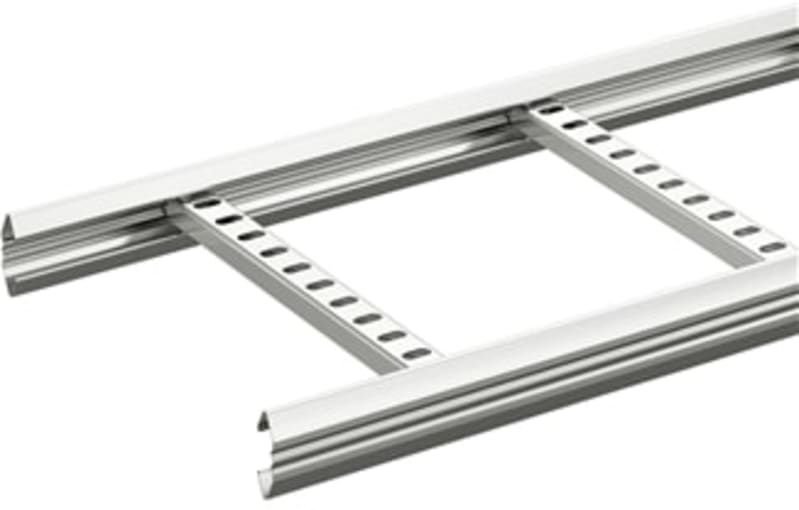

Wibe Group CSU794440 Wibe - cable ladder - KHZSP-300 - open side profiles provided with draining holes and perforated rungs - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- CSU794440 EAN / GTIN: 3606480446801 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 300 mm Height: 55 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Profile (open) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 24000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 2.17 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 6.51 kg Length pack 1: 2995 mm Width pack 1: 298 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 195.3 kg Length pack 4: 2995 mm Width pack 4: 630 mm Height pack 4: 570 mm Net weight: 6.51 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 38.0184 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480446801
- SAP 1000514931
- Code 8389775
Product Documentation
