Wibe Group CSU795322 Bracket 50I-500 FZS Pre-Galvanized Steel
Pricing
Request a quote
We reply within 24 hours
Product Description

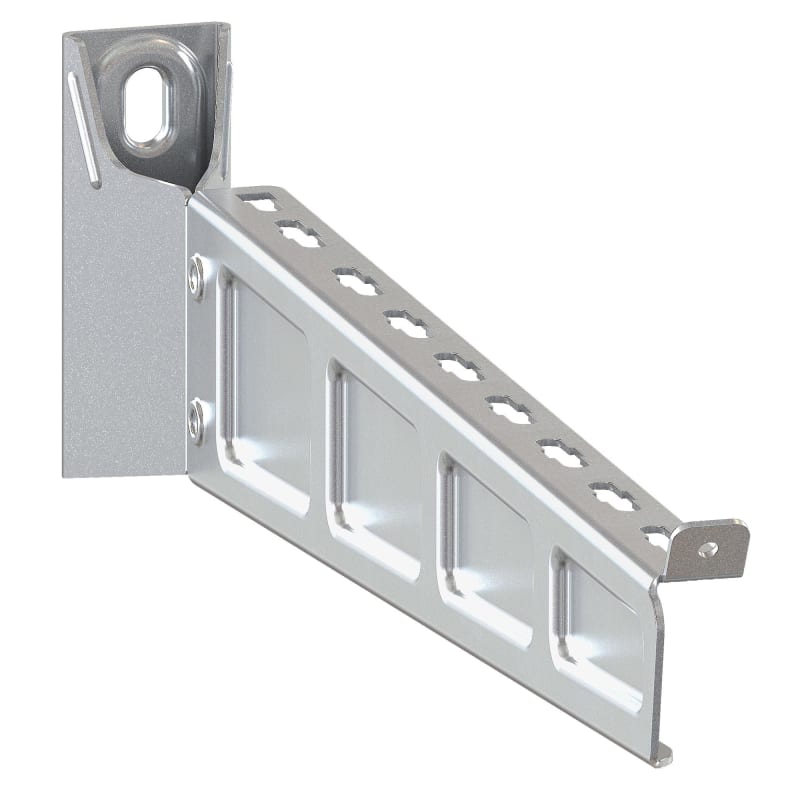

The Wibe Group CSU795322 is a wall/profile cantilever bracket for 50-series cable ladder up to 500 mm wide, in pre-galvanised steel with C2 corrosion class. It measures 580 mm long by 130 mm high and is rated to a safe working load of 1,765 N according to IEC 61537. Suitable for indoor cable-management runs on structural profiles.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795322
- EAN / GTIN
- 3606480911354
- Sales unit
- pcs
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Length
- 580 mm
- Width
- 50 mm
- Height
- 130 mm
- Suitable for cable management system width
- 100 - 500 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized
- Max. safe working load according to IEC 61537
- 1765 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1.702 kg
- Length pack 1
- 580 mm
- Width pack 1
- 50 mm
- Height pack 1
- 150 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 116
- Weight pack 4
- 234.432 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 530 mm
- Net weight
- 1.7 kg
- Country of origin
- PL
- ETIM class
- EC000022
- GWP Total A1-A3
- 4.834 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606480911354
- SAP 1000765438
- Code 8550811
Product Documentation
