Wibe Group

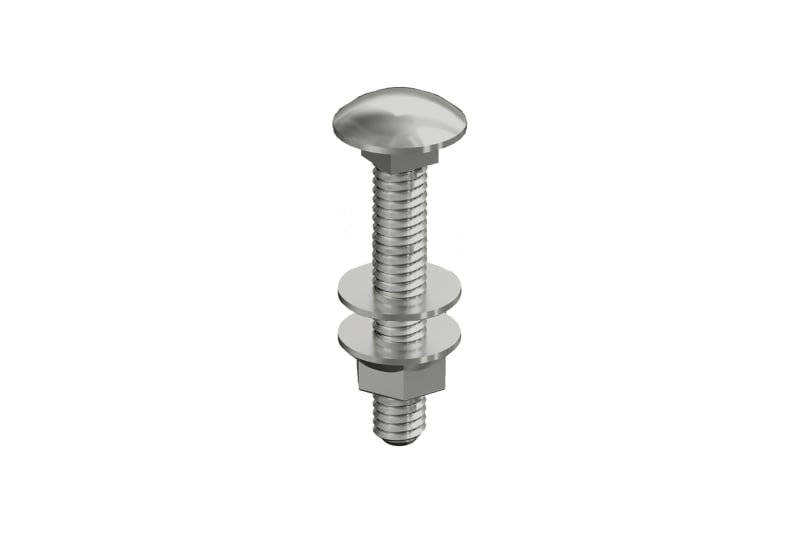

Screw set Beam clamp 6BK-40 Fzv
Part numberCSU795923EAN / GTIN7321677959235HS code7308.90
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795923 Wibe - Bolt-kits for the Beam clamp 6BK-40 steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795923
- EAN / GTIN
- 7321677959235
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Length
- 25 mm
- Width
- 25 mm
- Height
- 75 mm
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Material quality
- 8.8 (steel)
- Surface protection
- Hot-dip galvanized
- Head form
- Rounded head
- Countersunk head
- No
- Dimension square neck bolt
- 10 mm
- Thread size (metric)
- 10
- Length to bottom side head
- 70 mm
- Thread length
- 26 mm
- Full thread
- No
- Pitch thread
- 1.25 mm
- Thread type
- Metric
- Left
- No
- Head diameter
- 25 mm
- Head height
- 5 mm
- With flange
- No
- With nut
- Yes
- With washer
- No
- Self
- No
- Quantity pack 1
- 4
- Weight pack 1
- 0.242 kg
- Length pack 1
- 150 mm
- Width pack 1
- 150 mm
- Height pack 1
- 120 mm
- Net weight
- 0.07 kg
- Country of origin
- SE
- ETIM class
- EC003861
- GWP Total A1-A3
- 0.2 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677959235
- SAP 1200750088
- Code 83889392
Product Documentation
Document preview: Screw set Beam clamp 6BK-40 Fzv (CSU795923) — Specification sheet
More from Wibe Group
Wibe Group

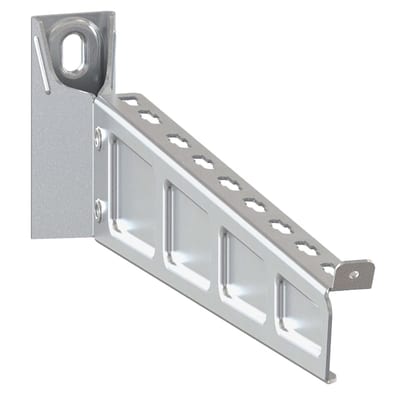

Wibe Group CSU795322 Bracket 50I-500 FZS Pre-Galvanized Steel
Wibe Group

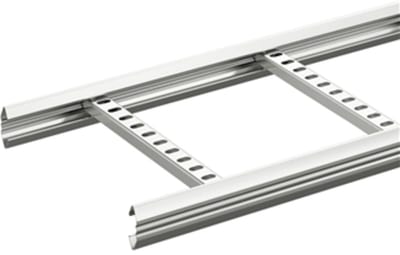

Cable Ladder KHZSP-600 6M SF
CSU794449
Wibe Group

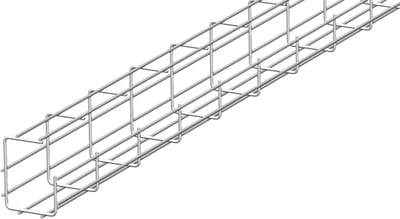

G-wire mesh tray B120X150 2,5M Fzv
1149239
Wibe Group

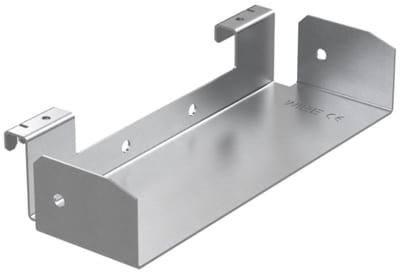

Wibe T-Joint W29/40-100 for W1/W3/W70 — Pre-galvanized steel
790985
Wibe Group

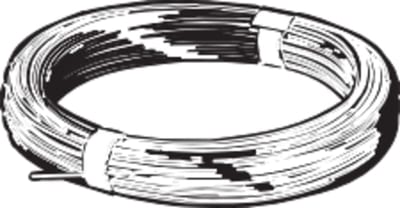

Carrier line HT-2309 FZV
713679
Wibe Group

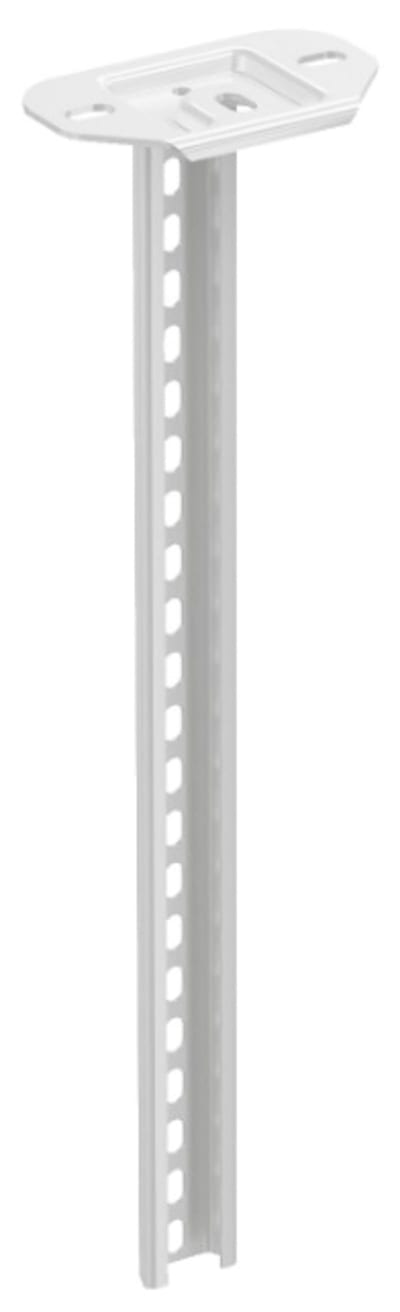

Ceiling Pendant 2/700 ZP HV
