Cable ladder KHZV-500 6M ZP white
Part number714201EAN / GTIN7321677142019HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

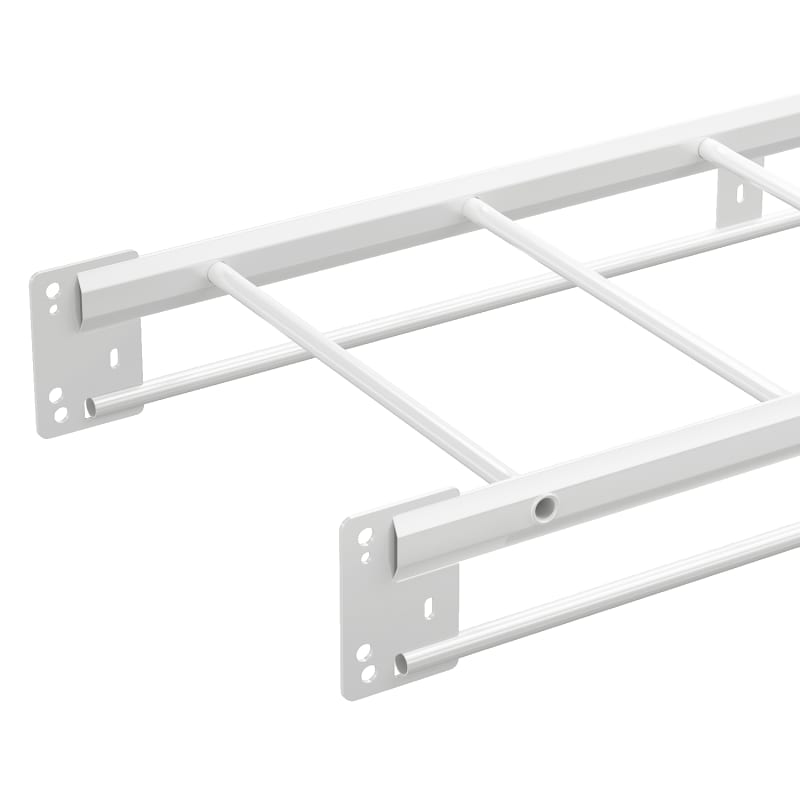

Wibe Group 714201 Wibe - reinforced cable ladder - KHZV-500 - closed side profiles and round rungs - 6 m - steel Zinkpox coated white.
Technical Specifications
- Manufacturer part number (MPN)
- 714201 EAN / GTIN: 7321677142019 HS code: 8544.42 Sales unit: m minimum order quantity: 6 Order multiple: 6 Colour: White NCS S 0500 N gl30 Length: 6000 mm Width: 500 mm Height: 150 mm material: Steel material type or surface treatment: Zinkpox coated Corrosion class: C5 Type of side joist: Tube shape (closed) Side wall perforation: Yes Type of rung: Tube shape (closed) Fixation rung: Fully revited Useful cross section: 40000 mm² Rung centre spacing: 250 mm Wide span model: Yes Suitable for circuit integrity: No material quality: Other Surface protection: Hot-dip galvanized and coated Load test type according to IEC 61537: Type II Weight: 5.05 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 30.3 kg Length pack 1: 6200 mm Width pack 1: 497 mm Height pack 1: 150 mm Pack 4 type: Pallet Quantity pack 4: 10 Weight pack 4: 347 kg Length pack 4: 6200 mm Width pack 4: 580 mm Height pack 4: 920 mm Net weight: 30.3 kg Country of origin: SE ETIM class: EC000854
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677142019
- SAP 1200826438
- Code 84019023
Product Documentation
Document preview: Cable ladder KHZV-500 6M ZP white (714201) — Specification sheet
