Wibe Group
Wibe Group Cantilever Arm 50i-200mm FZS Black
Part numberCSU795847EAN / GTIN7321677958474HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

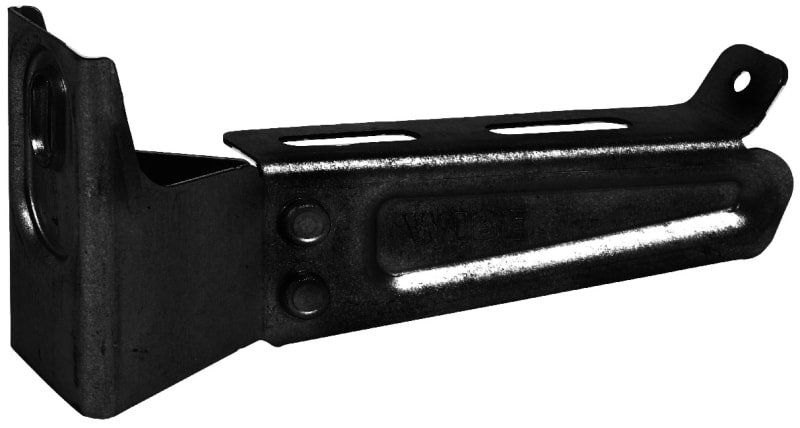

Wibe Group CSU795847 Wibe cantilever arm 50i-200 mm, steel pre-galvanized, black RAL 9005.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795847
- EAN / GTIN
- 7321677958474
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- Black RAL9005
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 250 mm
- Width
- 43 mm
- Height
- 85 mm
- Suitable for cable management system width
- 100 - 200 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- RAL
- 9005
- Max. safe working load according to IEC 61537
- 1265 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.29 kg
- Length pack 1
- 250 mm
- Width pack 1
- 40 mm
- Height pack 1
- 90 mm
- Pack 2 type
- Bag
- Quantity pack 2
- 2
- Weight pack 2
- 0.58 kg
- Length pack 2
- 300 mm
- Width pack 2
- 60 mm
- Height pack 2
- 100 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 300
- Weight pack 4
- 117 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.29 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677958474
- SAP 1200608818
- Code 83000088
Product Documentation
Document preview: Wibe Group Cantilever Arm 50i-200mm FZS Black (CSU795847) — Specification sheet
More from Wibe Group
Wibe Group
Klickkonsoll 30-600 Fzs white
CSU795288
Wibe Group

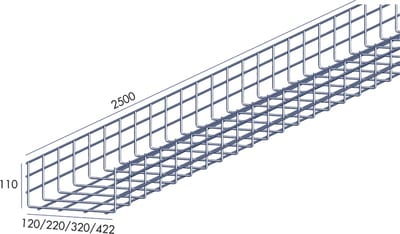

Wire mesh tray 422/110-ø5/6 2,5M
1149107
Wibe Group

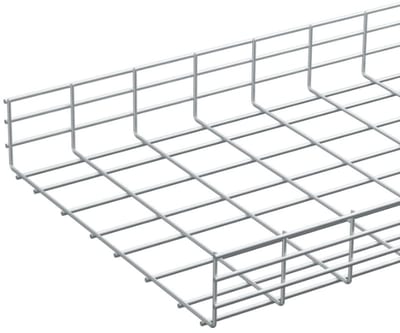

Wire mesh tray 522/110-Ø5/6 2,5M FZV
1149308
Wibe Group

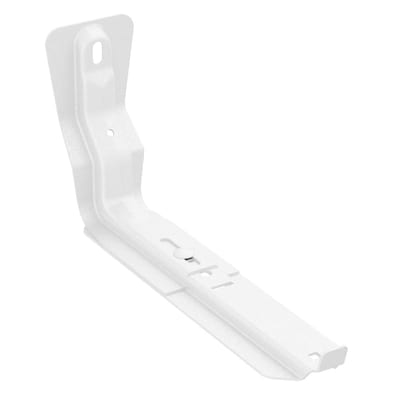

Klickkonsoll 30-200 Fzs white
CSU795287
Wibe Group

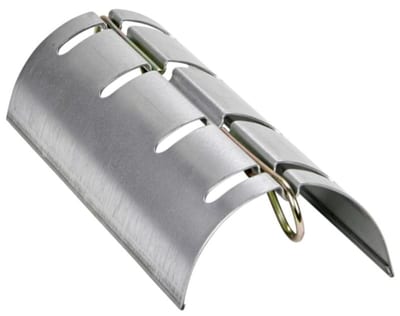

Radiusbegrenser B34/120 SF
1149531
Wibe Group

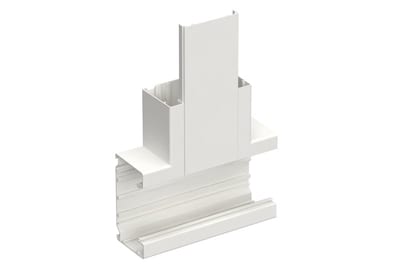

T-piece al 120/65 hv 9003
STA520044
Wibe Group

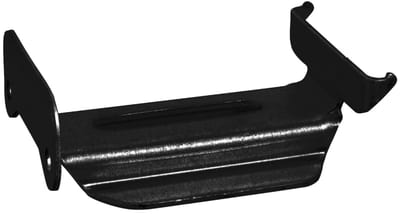

Carrier IRON W19/40-600 FZS Black
CSU795845
Wibe Group

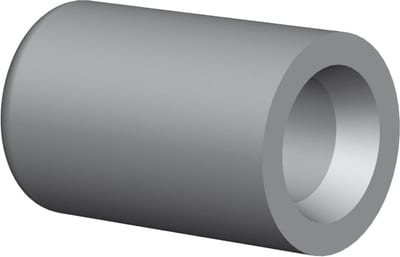

Plastknott B32 6mm flammesik. (100 pcs)
