Wibe Group
T-piece al 120/65 hv 9003
Part numberSTA520044EAN / GTIN7321679004247HS code7610.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

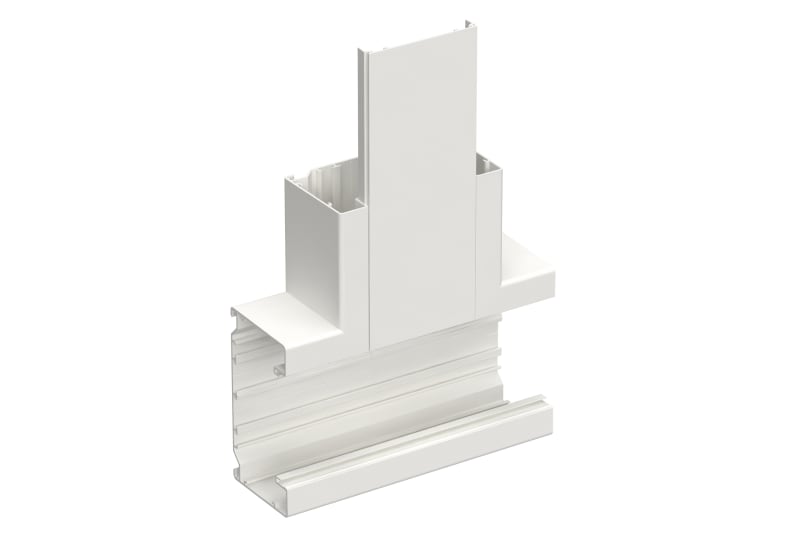

Wibe Group STA520044 T-piece, Stago WGX-A, aluminium, 120/65, F80 front included, white RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- STA520044
- EAN / GTIN
- 7321679004247
- Sales unit
- pcs
- Dimension
- 120/65
- Colour
- White RAL9003
- Material
- Aluminium
- Material type or surface treatment
- Powder coated
- Width
- 200 mm
- Depth
- 65 mm
- Width branch
- 120 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Model
- Base unit and cover
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- No
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Net weight
- 0.47 kg
- Country of origin
- SE
- ETIM class
- EC001939
- GWP Total A1-A3
- 0.945 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679004247
- SAP 1200810885
- Code 83992133
Product Documentation
Document preview: T-piece al 120/65 hv 9003 (STA520044) — Specification sheet
More from Wibe Group
Wibe Group
Carrier IRON W19/40-600 FZS Black
CSU795845
Wibe Group
Plastknott B32 6mm flammesik. (100 pcs)
1149367
Wibe Group
Outer BEND 15/300 90° ZP HV
716189
Wibe Group
Wibe Group Adjustable Cantilever Arm W18/40-400 FZS Steel
783588
Wibe Group

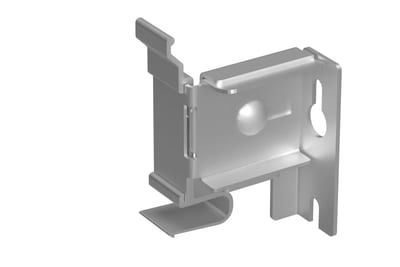

Wibe Group Adjustable Bracket 70-110 mm
STA500065
Wibe Group

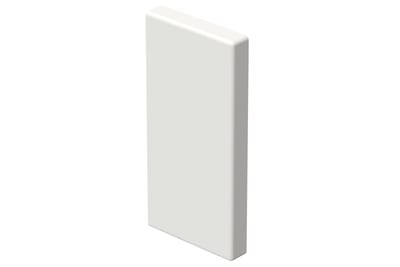

End piece 110/52 White RAL9003
STA550008
Wibe Group

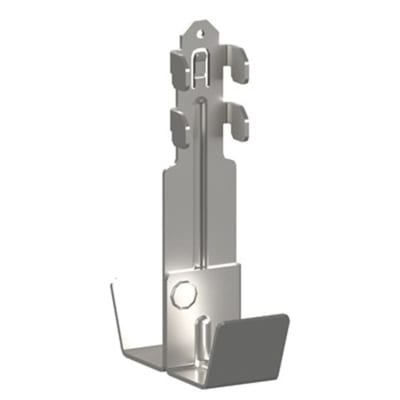

Carrier IRON CLX3 RENNE-100/40 FZS
CSU795654
Wibe Group

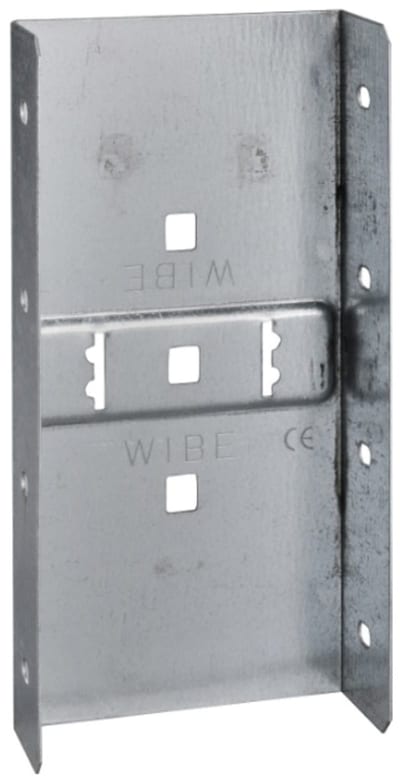

Wibe Support Beam / Joint W7/40-400 GL30 — Pre-galvanized steel
