P/A rail 24/48 1M ZP white
Part numberCSU795568EAN / GTIN3606481317896HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

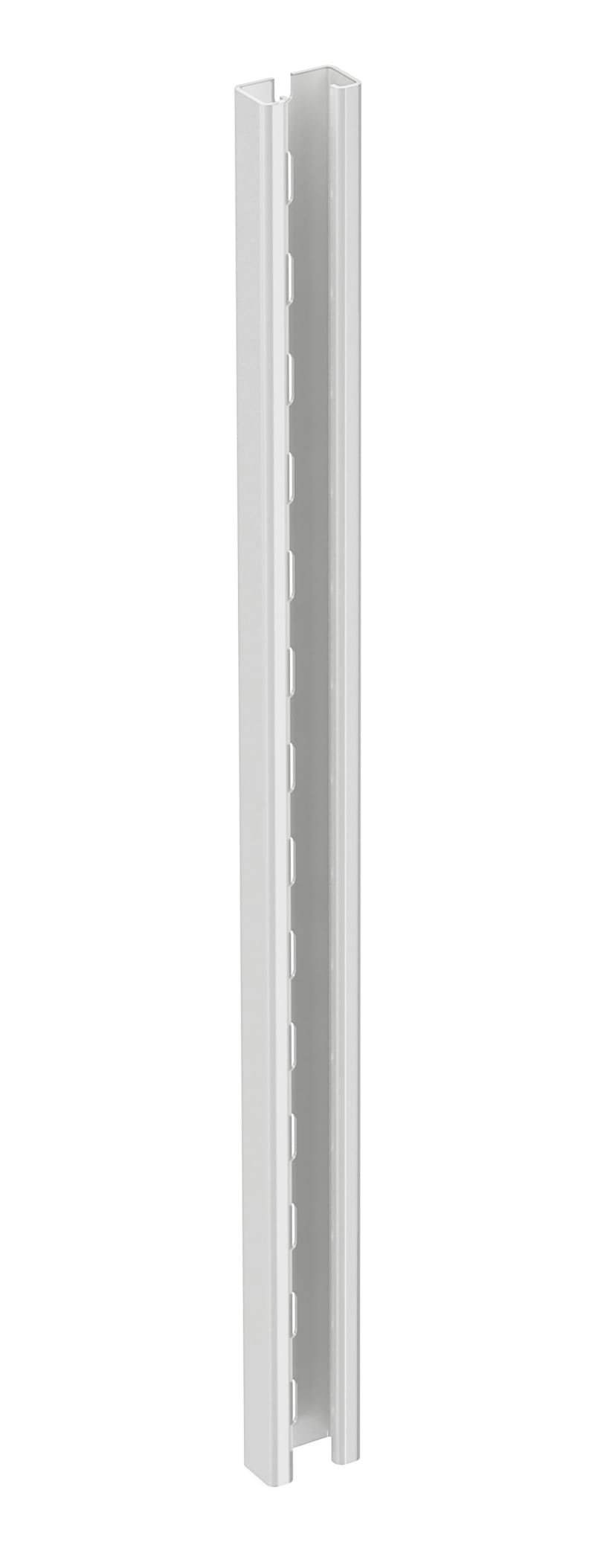

Wibe Group CSU795568 Wibe - pendant/fixing rail 24/48 - 1m - steel hot-dip galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795568
- EAN / GTIN
- 3606481317896
- Sales unit
- pcs
- Package quantity
- 144 pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 1000 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Width
- 48 mm
- Height
- 26 mm
- Slit width
- 22 mm
- Material thickness
- 1.8 mm
- Profile shape
- C-profile
- Model
- Singular profile
- Type of perforation
- Back perforated
- Hole width
- 9 mm
- With toothing
- No
- Snap
- No
- Area moment of inertia Iy
- 7.93 cm4
- Area of inertia Iz
- 2.23 cm4
- Moment of resistance Wy
- 3.3 cm³
- Moment of resistance Wz
- 1.52 cm³
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Layer thickness surface protection
- 55 µm
- Weight
- 1.75 kg/m
- Quantity pack 1
- 1
- Weight pack 1
- 1.8 kg
- Length pack 1
- 990 mm
- Width pack 1
- 48 mm
- Height pack 1
- 26 mm
- Net weight
- 1.8 kg
- Country of origin
- SE
- ETIM class
- EC000386
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606481317896
- SAP 1200067881
- Code 81907208
Product Documentation
Document preview: P/A rail 24/48 1M ZP white (CSU795568) — Specification sheet
