Wibe Group

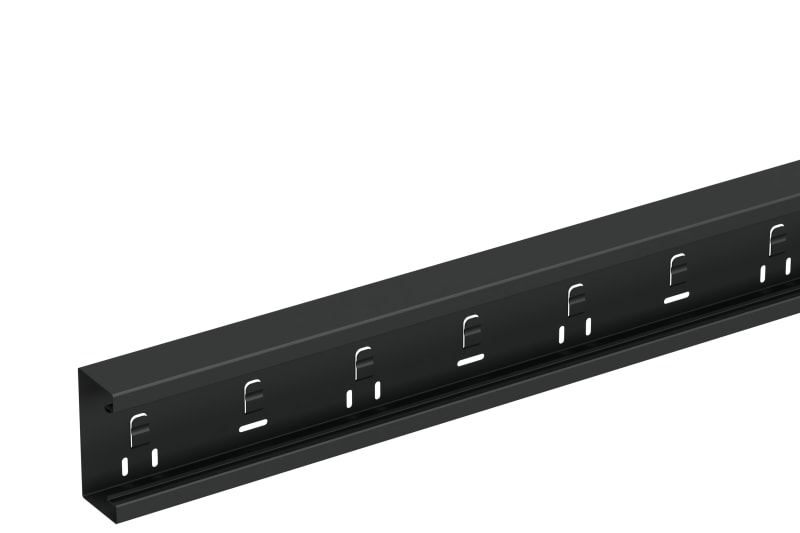

Kanalunderd 110/52 Black RAL9017 2,M
Part numberSTA550071EAN / GTIN8720871001174HS code7308.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Trunking Base 110/52 mm F80 opening L=2,5 m steel black RAL9017/30.
Technical Specifications
- Manufacturer part number (MPN)
- STA550071
- EAN / GTIN
- 8720871001174
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- RAL 9017
- Dimension
- 110/52
- Length
- 2500 mm
- Width
- 52 mm
- Height
- 110 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 52 mm
- Number of covers
- 1
- Covers supplied with the product
- No
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9017
- Construction rear wall (inner side)
- Perforated
- With protective foil
- No
- Number of plug
- 1
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 4.83 kg
- Length pack 1
- 2500 mm
- Width pack 1
- 110 mm
- Height pack 1
- 52 mm
- Net weight
- 4.83 kg
- Country of origin
- NL
- ETIM class
- EC001938
- GWP Total A1-A3
- 19.368 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871001174
- SAP 1200714310
- Code 83808516
Product Documentation
Document preview: Kanalunderd 110/52 Black RAL9017 2,M (STA550071) — Specification sheet
More from Wibe Group
Wibe Group
Kanalund al 110/55 2.5M anod
STA520007
Wibe Group

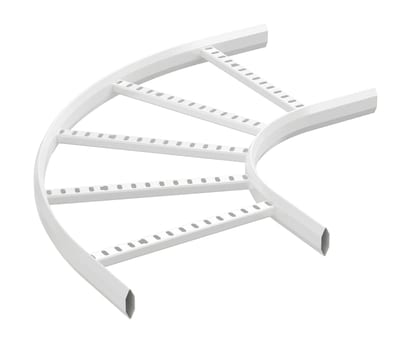

Wibe Group 90° Horizontal Bend 15 x 400 mm Cable Ladder White
CSU795278
Wibe Group

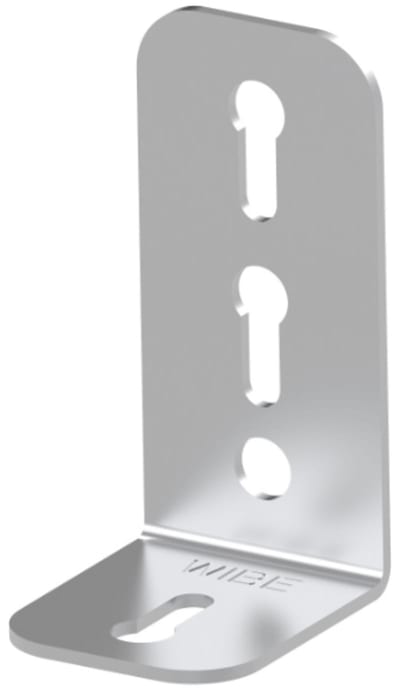

Vineklfeste W8 FZS HV
729066
Wibe Group

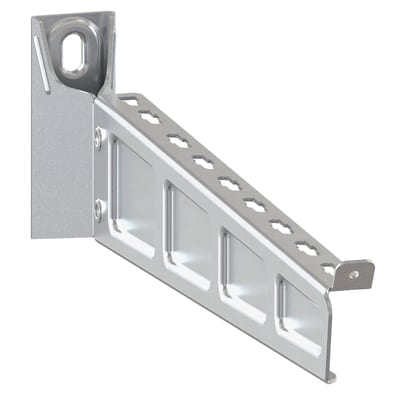

Wibe Group Console 50i-200 Hot-Dip Galvanised
CSU795317
Wibe Group
Concrete Screw MMS-S MF 7,5X70 FZV
IMT38051
Wibe Group

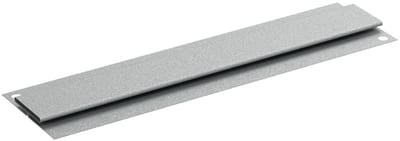

Joint FOR Cover W5 300mm FZS
712642
Wibe Group

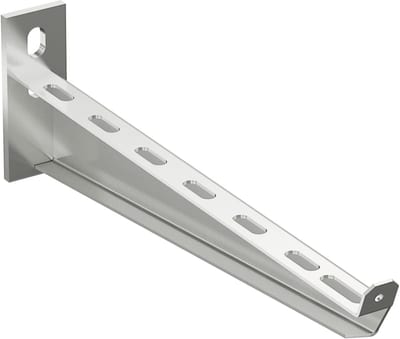

Wall Bracket 50/500 5,5M SF
725624
Wibe Group

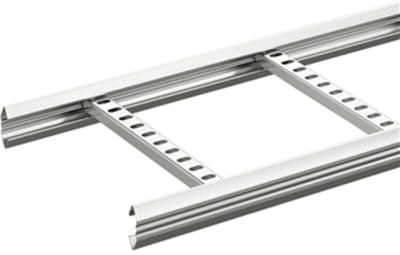

Cable Ladder KHZSP-200 6M SF
