Wibe Group 90° Horizontal Bend 15 x 400 mm Cable Ladder White
Pricing
Request a quote
We reply within 24 hours
Product Description

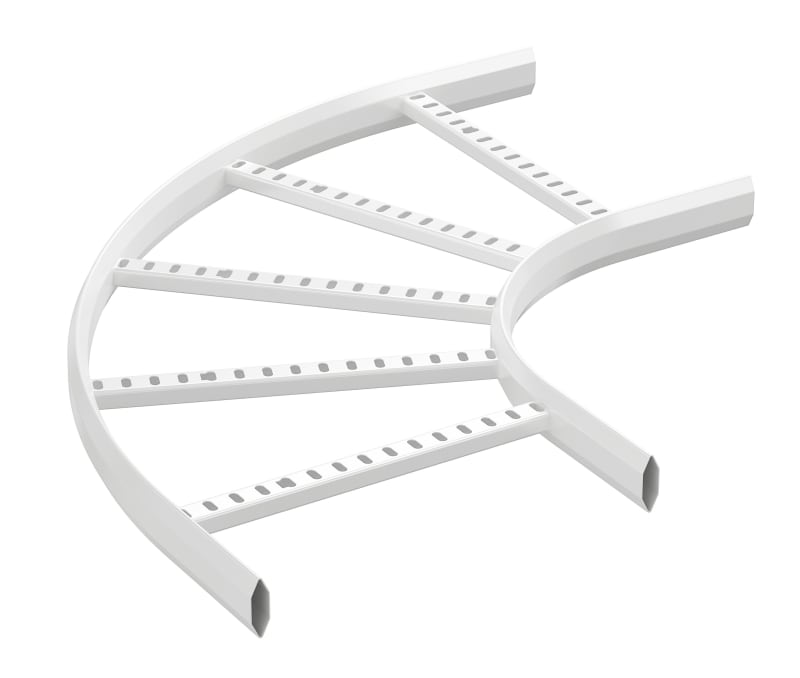

Wibe Group CSU795278 is a 90° smooth horizontal bend for cable ladders, 400 mm wide and 55 mm high with 250 mm inner radius. The steel body has closed tube-shape side rails and perforated rungs, finished by continuous galvanising with a white NCS S 0500 N gloss-30 top coat for corrosion class C2. It is supplied without connectors so installers can select the appropriate splice hardware. Typical application is direction changes in painted cable ladder runs within industrial and commercial buildings.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795278
- EAN / GTIN
- 3606481279477
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 400 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Change of direction
- Horizontal
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 400 mm
- Model
- Without connector
- Inner radius
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Continuously galvanized and coated
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 3606481279477
- SAP 1200826422
- Code 84018998
Product Documentation
More from Wibe Group
Wibe Group
Vineklfeste W8 FZS HV
729066
Wibe Group
Wibe Group Console 50i-200 Hot-Dip Galvanised
CSU795317
Wibe Group
Concrete Screw MMS-S MF 7,5X70 FZV
IMT38051
Wibe Group
Joint FOR Cover W5 300mm FZS
712642
Wibe Group
Wall Bracket 50/500 5,5M SF
725624
Wibe Group
Cable Ladder KHZSP-200 6M SF
CSU794445
Wibe Group
Cable Ladder KHZV-600 6M ZP HV
Wibe Group
Mounting Plate 35S FOR K-Ladder ZP White
730246
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CSU795278?
- CSU795278 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is CSU795278.
- What is the HS code for CSU795278?
- The customs tariff (HS) code for CSU795278 is 7308.90.
- Who manufactures CSU795278?
- CSU795278 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for CSU795278?
- Yes — the CSU795278 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CSU795278?
- The minimum order quantity is 1.
- Is CSU795278 available?
- Yes — CSU795278 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
