Wibe Group
Cable Ladder KHZSP-200 6M SF
Part numberCSU794445EAN / GTIN3606480446856HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

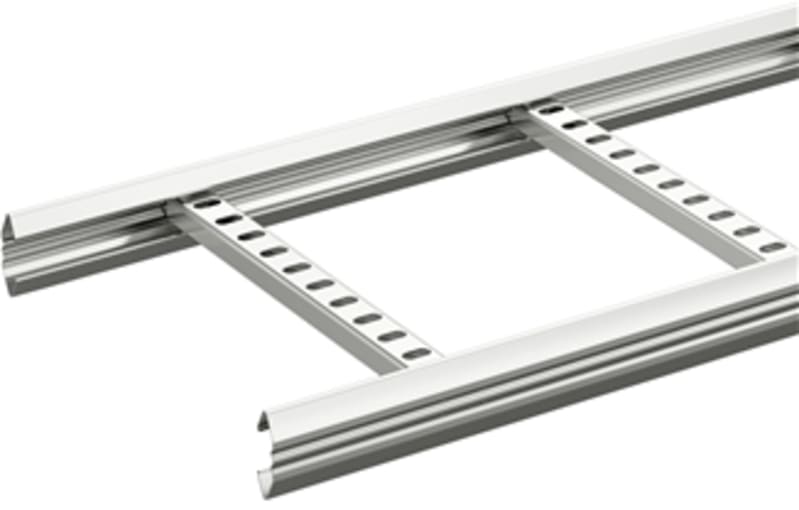

Wibe Group CSU794445 Wibe - cable ladder - KHZSP-200 - open side profiles provided with draining holes and perforated rungs - 6 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- CSU794445 EAN / GTIN: 3606480446856 HS code: 8544.42 Sales unit: m minimum order quantity: 6 Order multiple: 6 Length: 6000 mm Width: 200 mm Height: 55 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX Type of side joist: Profile (open) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 16000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: No material quality: Stainless steel 316 L (1.4404) Surface protection: EV020086 Load test type according to IEC 61537: Type II Weight: 1.98 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 11.88 kg Length pack 1: 5995 mm Width pack 1: 198 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 356.4 kg Length pack 4: 5995 mm Width pack 4: 430 mm Height pack 4: 570 mm Net weight: 11.88 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 69.3792 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480446856
- SAP 1000514930
- Code 8389772
Product Documentation
Document preview: Cable Ladder KHZSP-200 6M SF (CSU794445) — Specification sheet
