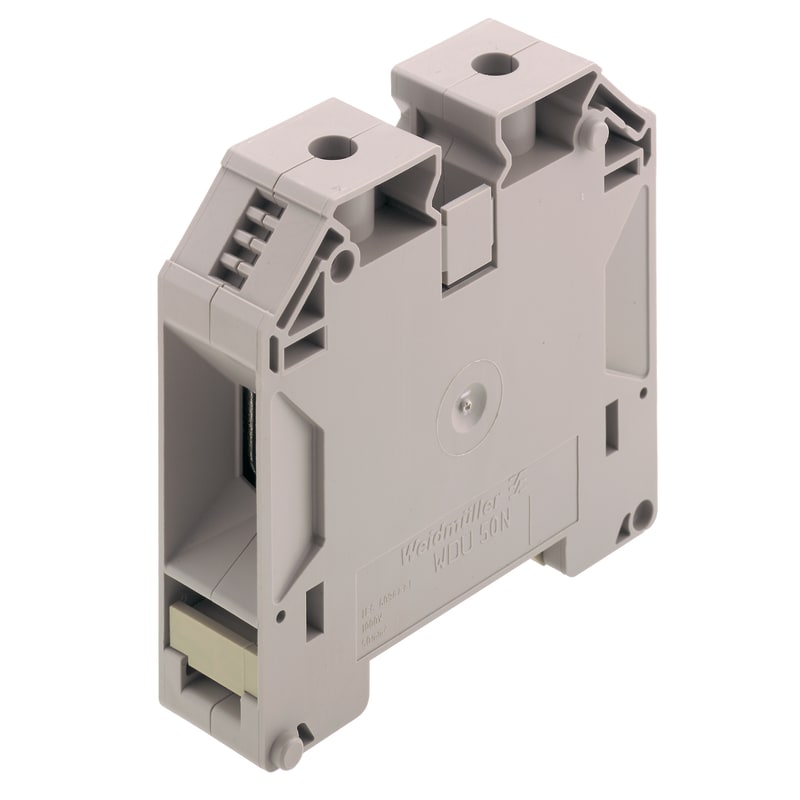

DIN-RAIL Terminal - WDU 50N
Pricing
Request a quote
We reply within 24 hours
Overview
Weidmüller DIN-RAIL Terminal - WDU 50N (part number 1820840000) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Suitable for conductor material: Copper; Rated current In: 150 A; Rated voltage: 1000 V; Type of electrical connection 1: Screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- 1820840000
- EAN / GTIN
- 4032248318117
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 10–16 mm²
- Connectable conductor cross section multi-wired
- 10–70 mm²
- Rated current In
- 150 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 18.5 mm
- Width/grid dimension
- 18.5 mm
- Height
- 70 mm
- Depth
- 69.6 mm
- Length
- 70 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4032248318117
- SAP 1000071649
- Code 8733002
Product Documentation
More from Weidmüller
Weidmüller
DIN-RAIL Terminal ZDLD 2,5N
ZDLD 2.5-2N
Weidmüller
Disconnect Terminal - ZTR 2,5 BL
ZTR 2.5 BL
Weidmüller
Dekafix 5 FWZ MRK 71-80 HOR
DEK 5 FWZ 71-80
Weidmüller
Weidmüller CLI TM 20-66 Bag A50 (WPM) Marker Tags
Weidmüller
WAP 2,5 N (wap WDU2.5N/4N)
WAP WDU2.5N/4N
Weidmüller
DIN-RAIL Terminal SAKC 10 KRG
0324120000
Weidmüller

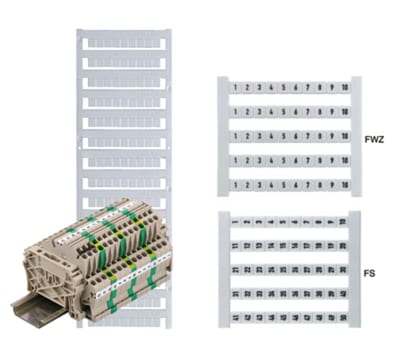

Dekafix 5 FW MRK 601-650 HOR
DEK 5 FW 601-650
Weidmüller

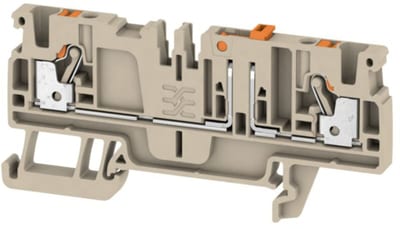

ADT 2,5 2C (adt 2.5 2C)
