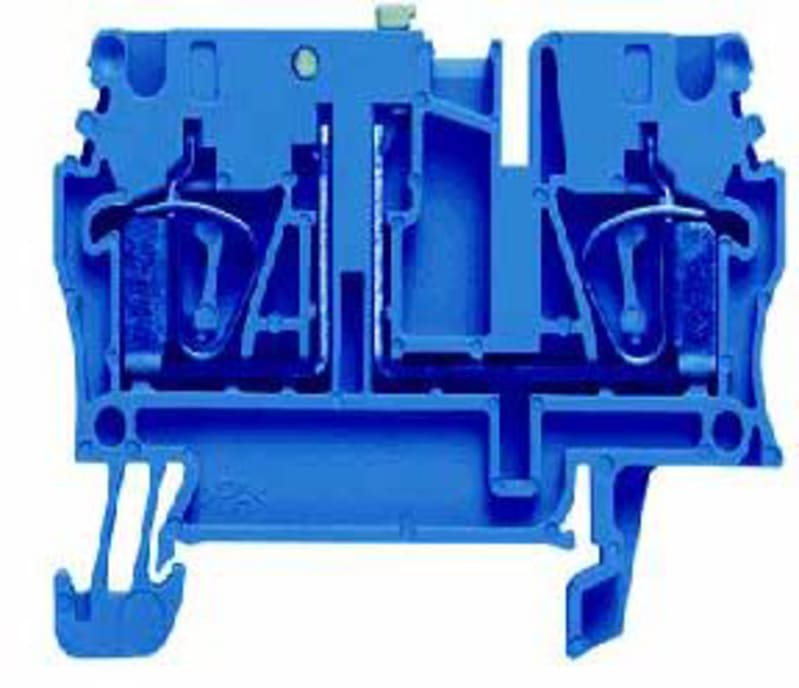

Disconnect Terminal - ZTR 2,5 BL
Pricing
Request a quote
We reply within 24 hours
Overview
Weidmüller Disconnect Terminal - ZTR 2,5 BL is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Rated current In: 20 A; Rated voltage: 500 V; Type of electrical connection 1: Spring clamp connection; Type of electrical connection 2: Spring clamp connection.
Technical Specifications
- Manufacturer part number (MPN)
- ZTR 2.5 BL
- EAN / GTIN
- 4032248404896
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.05–4 mm²
- Connectable conductor cross section multi-wired
- 0.05–4 mm²
- Rated current In
- 20 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 59.5 mm
- Depth
- 38.5 mm
- Closing plate required
- Yes
- Colour
- Blue
- Type of slitting
- Swivelling
- Type of cross disconnection
- None
- With integrated test socket
- Yes
- Length
- 59.5 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4032248404896
- SAP 1000028720
- Code 8209919
