Weidmüller

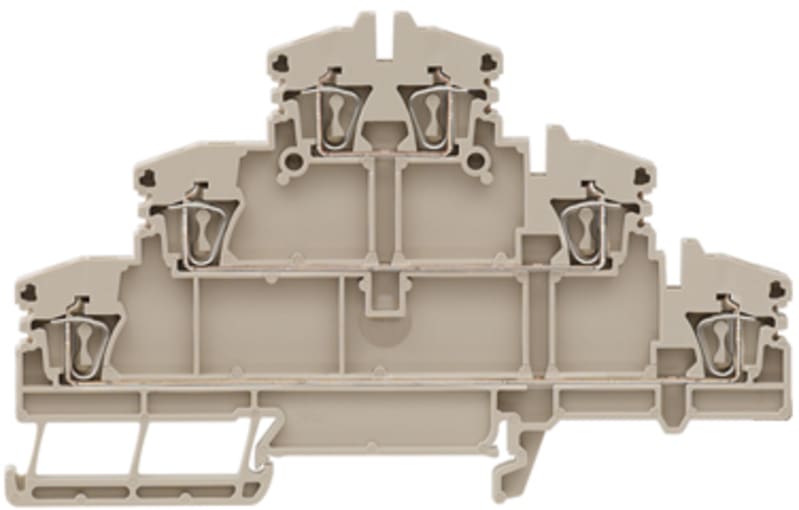

DIN-RAIL Terminal ZDLD 2,5N
Part numberZDLD 2.5-2NEAN / GTIN4032248176526HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller ZDLD 2.5-2N Tier terminal, 2.5 mm², Spring terminal connection, Wemid,Beige,TS 35, 3 etasjes terminal.
Technical Specifications
- Manufacturer part number (MPN)
- ZDLD 2.5-2N
- EAN / GTIN
- 4032248176526
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.08–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.08–4 mm²
- Rated current In
- 20 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of levels
- 3
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 110.5 mm
- Depth
- 69 mm
- Length
- 110.5 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4032248176526
- SAP 1000007723
- Code 877632
Product Documentation
Document preview: DIN-RAIL Terminal ZDLD 2,5N (zdld 2.5-2N) — Specification sheet
