Weidmüller Modular distribution terminals, PUSH IN, 1
Part numberAAP11 1.5 LI RDEAN / GTIN4050118372939HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

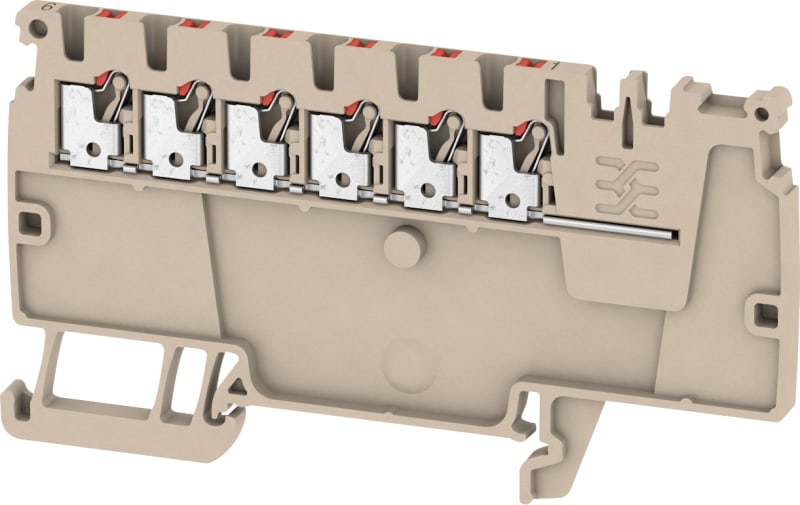

Weidmüller AAP11 1.5 LI RD Modular distribution terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige.
Technical Specifications
- Manufacturer part number (MPN)
- AAP11 1.5 LI RD
- EAN / GTIN
- 4050118372939
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.14–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Rated current In
- 17.5 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Plug-in connection
- Type of electrical connection 2
- Plug-in connection
- Connection position
- Atop
- Number of levels
- 1
- Number of clamp positions per level
- 6
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 3.5 mm
- Width/grid dimension
- 3.5 mm
- Height
- 85.5 mm
- Depth
- 47 mm
- Length
- 85.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050118372939
- SAP 1200013788
- Code 81382747
Product Documentation
Document preview: Weidmüller Modular distribution terminals, PUSH IN, 1 — Specification sheet
