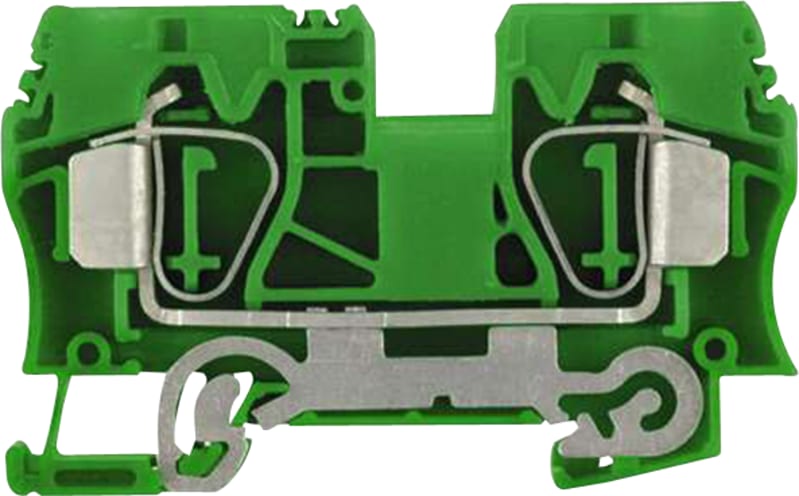

Earth clamp ZPE 16
Pricing
Request a quote
We reply within 24 hours
Overview
Weidmüller Earth clamp ZPE 16 is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; PEN function possible: Yes; Type of electrical connection 1: Spring clamp connection; Type of electrical connection 2: Spring clamp connection; Connection position: Atop; Mounting method: DIN rail (top hat rail) 35 mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZPE 16
- EAN / GTIN
- 4008190996789
- Sales unit
- pcs
- PEN function possible
- Yes
- Connectable conductor cross section solid-core
- 1.5–16 mm²
- Connectable conductor cross section multi-wired
- 1.5–25 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 12.1 mm
- Width/grid dimension
- 12.1 mm
- Height
- 82.5 mm
- Depth
- 50.5 mm
- Length
- 50.5 mm
- Closing plate required
- Yes
- Colour
- Green/yellow
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190996789
- SAP 1000075347
- Code 8748232
