Weidmüller

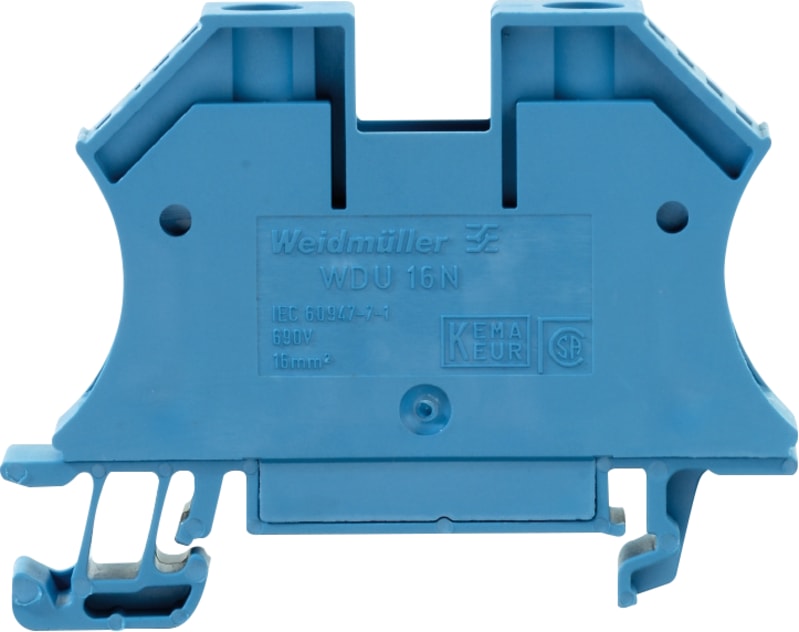

DIN-RAIL Terminal WDU 16N BLUE
Part numberWDU 16N BLEAN / GTIN4008190273224HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller WDU 16N BL Feed-through terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 16N BL
- EAN / GTIN
- 4008190273224
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 1.5–16 mm²
- Connectable conductor cross section multi-wired
- 1.5–25 mm²
- Rated current In
- 76 A
- Rated voltage
- 690 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -50–120 °C
- Width
- 12 mm
- Width/grid dimension
- 12 mm
- Height
- 60 mm
- Depth
- 46.5 mm
- Length
- 60 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190273224
- SAP 1000001302
- Code 817031
Product Documentation
Document preview: DIN-RAIL Terminal WDU 16N BLUE — Specification sheet
