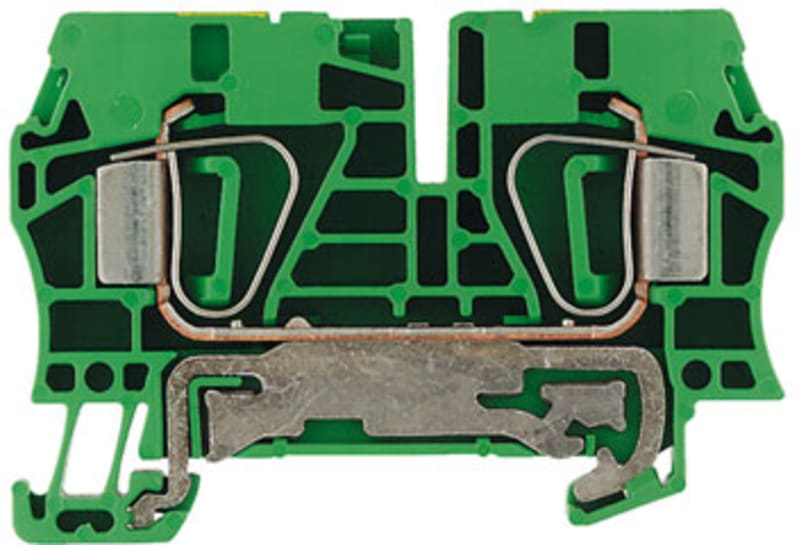

Weidmüller ZPE 6 Earth Feed-Through Terminal Block 6 mm² Spring Clamp Green/Yellow

Weidmüller ZPE 6 is a single-level earth feed-through terminal block with spring-clamp connection on both sides for conductors of 0.22-10 mm² (solid or stranded). The 8.1 mm-wide green/yellow body mounts on a 35 mm top-hat DIN rail with direct earth-rail contact, and operates from -50 to 120 °C. A closing plate is required at the end of the assembly.

Manufacturer part number (MPN)

ZPE 6

EAN / GTIN

4008190259242

Sales unit

pcs

PEN function possible

No

Connectable conductor cross section solid-core

0.22–10 mm²

Connectable conductor cross section multi-wired

0.22–10 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-50–120 °C

Width

8.1 mm

Width/grid dimension

8.1 mm

Height

65 mm

Depth

45 mm

Length

45 mm

Closing plate required

Yes

Colour

Green/yellow

Country of origin

Czechia

HS Code

8536.90

• EAN 4008190259242
• SAP 1000003500
• Code 824728
