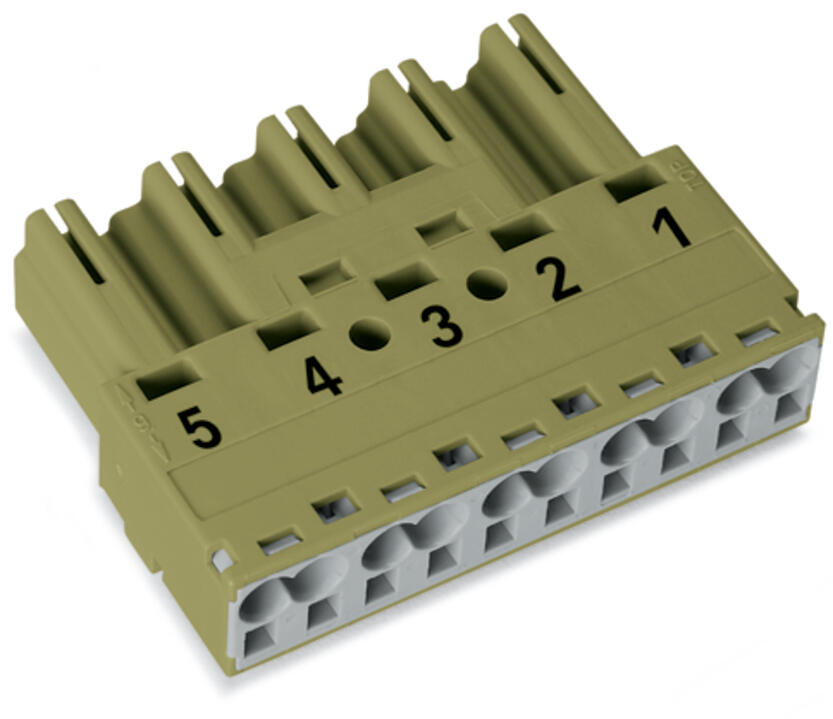

Plug for lindinvent (770-275/074-000)
Pricing
Request a quote
We reply within 24 hours
Overview
WAGO Plug for lindinvent (770-275/074-000) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Clamping units: 10; Total number of potentials: 5; Pin spacing: 10 mm / 0.394 inches; Width: 50 mm / 1.969 inches; Height: 12.9 mm / 0.508 inches.
Technical Specifications
- Manufacturer part number (MPN)
- 770-275/074-000
- EAN / GTIN
- 4050821546689
- Sales unit
- pcs
- Clamping units
- 10
- Total number of potentials
- 5
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 50 mm / 1.969 inches
- Height
- 12.9 mm / 0.508 inches
- Depth
- 37.5 mm / 1.476 inches
- Use
- Control technology
- Coding
- B
- Variable coding
- Yes
- Marking
- 5 4 3 2 1
- Potential marking
- 5 4 3 2 1
- Mating force of a plug-in connection
- approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection
- Locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles
- 200, without resistive load
- Protection type
- IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Contact type (pluggable connector)
- Male connector/plug
- Connector (connection type)
- for conductor
- Mismating protection
- Yes
- Locking lever
- Can be retrofitted
- Locking of plug-in connection
- Locking lever
- Color
- light green
- Cover color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.328 MJ
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,402
- eCl@ss 10.0
- 27-44-06-05
- eCl@ss 9.0
- 27-44-06-05
- ETIM 9.0
- EC002560
- ETIM 10.0
- EC002560
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821546689
- SAP 1200928840
- Code 84215999
